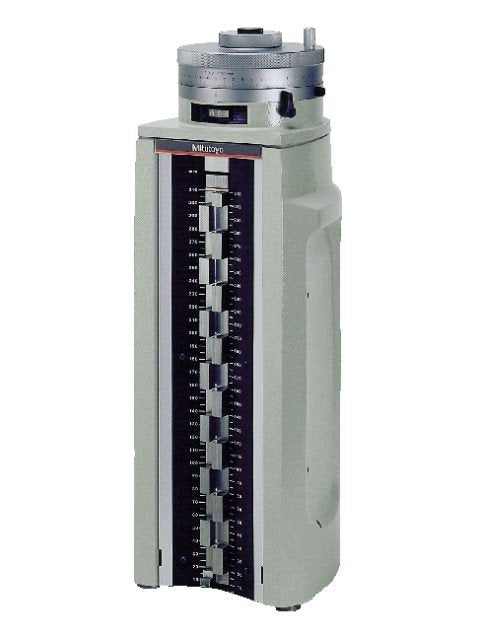

Mitutoyo 515-310 | Universal Height Master | Series 515 | Inch | Graduation 0.001 mm | Range 0.2 to 12.2 inch | Mass 21.4 kg
The Mitutoyo 515-310 Universal Height Master is a precision instrument designed for measuring heights with high accuracy. It features an inch graduation of 0.001 mm for extremely detailed measurements. With a range of 0.2 to 12.2 inches, it accommodates a wide variety of measurement tasks. The unit's solid construction, weighing 21.4 kg, ensures stability during use. This height master is ideal for quality control, inspection, and calibration of workpieces. It offers easy adjustments and reliable performance for professional environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | Block pitch: +/-50 µin |
Graduation | 0.001 mm |
Height | Block step: 0.5 Inch straight |
Inch-Metric | Inch |
Model Number | HM-12 |
Parallelism | Of blocks : 1 µm |
Range | 0.2 - 12.2 Inch |
Series | 515 |
Type | Universal Height Master |
Weight | 21.4 kg |
- ±1.5 μm High Precision: Graduation of 0.001 mm ensures extremely fine and accurate height measurements.
- Wide Measurement Range: Covers a range of 0.2 to 12.2 inches, making it suitable for a variety of workpieces.
- Sturdy Construction: Weighs 21.4 kg, providing a solid and stable base for reliable, consistent results.
- Inch Scale: Specifically designed for inch measurements, ideal for applications requiring imperial units.
- Versatile Application: Perfect for quality control, inspection, and calibration in precision engineering.
- User-Friendly: Easy to adjust and operate, streamlining the measurement process for professionals.
