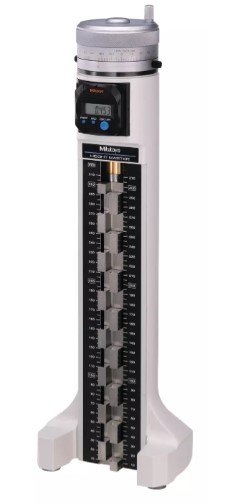

Mitutoyo 515-379 | Digital Height Master | Series 515 | Inch | Graduation 0.002 mm | Range 0.5 to 24 inch | Mass 16 kg
The Mitutoyo 515-379 Digital Height Master (Series 515) is a precision height measurement tool designed for applications requiring inch-based measurements. It features a fine graduation of 0.002 mm for highly accurate readings. With a measurement range of 0.5 to 24 inches, it is well-suited for larger workpieces and components. The device weighs 16 kg, ensuring stability and minimizing any movement during measurements. Ideal for use in demanding industrial and manufacturing environments, this instrument delivers consistent, reliable, and precise results.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | Block pitch accuracy: Range ¢°¤ 310 mm : +/-1.5 µm 310 < range ¢°¤ 450 mm: +/-2.5 µm 450 < range ¢°¤ 610 mm: +/-3.5 µm |
Adjustment options | Micrometer adjustment: 20 mm |
Battery Life | Approx. 1.8 years |
Graduation | 0.002 mm |
Height | Block step: 1 Inch staggered |
Inch-Metric | Inch |
Mass (main unit) | 16 kg |
Micrometer Head Feed (0-25 mm) | 0.5 mm |
Parallelism | Parallelism of blocks: Range ¢°¤ 310 mm: 2 µm 310 < range ¢°¤ 610 mm: 2.5 µm |
Range | 0.5 - 24 Inch |
Series | 515 |
Type | Digital Height Master |
- High Precision: Graduation of 0.002 mm for exceptional accuracy in measurements.
- Inch Measurement System: Specifically designed for applications that require inch-based height measurements.
- Extended Measurement Range: Capable of measuring from 0.5 to 24 inches, accommodating larger parts.
- Sturdy Construction: Weighs 16 kg, offering superior stability for accurate and reliable measurements.
- Digital Display: Provides clear, easy-to-read digital outputs, ensuring quick and precise data interpretation.
Related Products

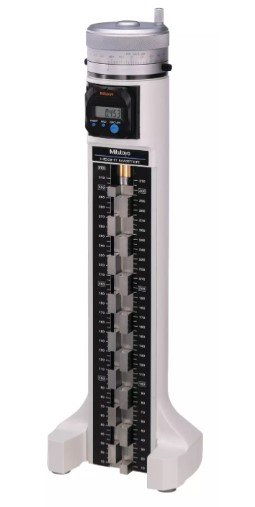

Mitutoyo 515-377 | Digital Height Master | Series 515 | Inch | Graduation 0.002 mm | Range 0.5 to 18 inch | Mass 13.6 kg

Mitutoyo 515-377 | Digital Height Master | Series 515 | Inch | Graduation 0.002 mm | Range 0.5 to 18 inch | Mass 13.6 kg

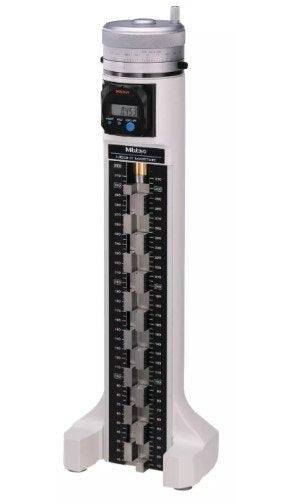

Mitutoyo 515-375 | Digital Height Master | Series 515 | Inch | Graduation 0.002 mm | Range 0.5 to 12 inch | Mass 9.5 kg

Mitutoyo 515-375 | Digital Height Master | Series 515 | Inch | Graduation 0.002 mm | Range 0.5 to 12 inch | Mass 9.5 kg

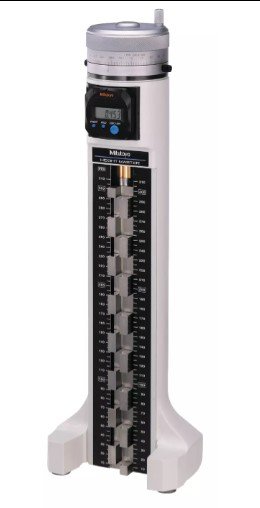

Mitutoyo 515-374 | Digital Height Master | Series 515 | Metric | Graduation 0.002 mm | Range 10 to 310 mm | Mass 9.5 kg

Mitutoyo 515-374 | Digital Height Master | Series 515 | Metric | Graduation 0.002 mm | Range 10 to 310 mm | Mass 9.5 kg

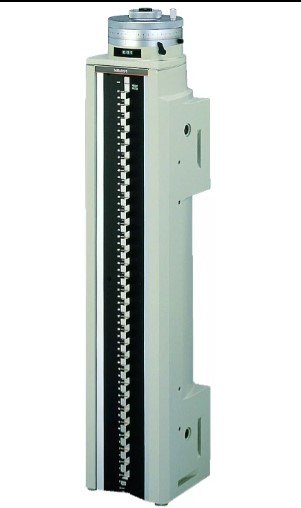

Mitutoyo 515-512 | Universal Height Master | Series 515 | Inch | Range 0.2 to 18.2 inch | Mass 42 kg

Mitutoyo 515-512 | Universal Height Master | Series 515 | Inch | Range 0.2 to 18.2 inch | Mass 42 kg

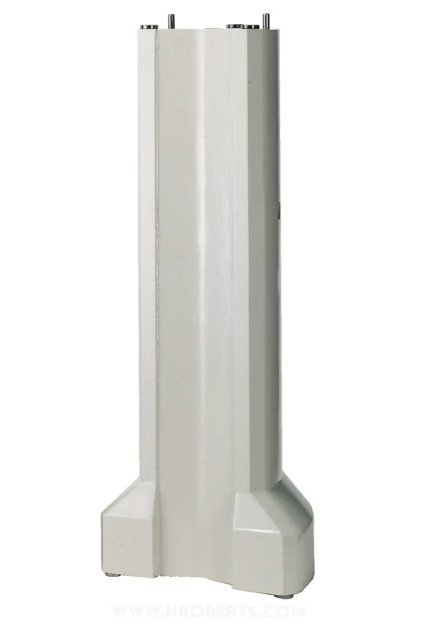

Mitutoyo 515-118 | Riser Block for Universal Height Master | Series 515 | Inch | Accuracy ±0.00008 inch | Height 24.0 inch | Mass 31 kg

Mitutoyo 515-118 | Riser Block for Universal Height Master | Series 515 | Inch | Accuracy ±0.00008 inch | Height 24.0 inch | Mass 31 kg

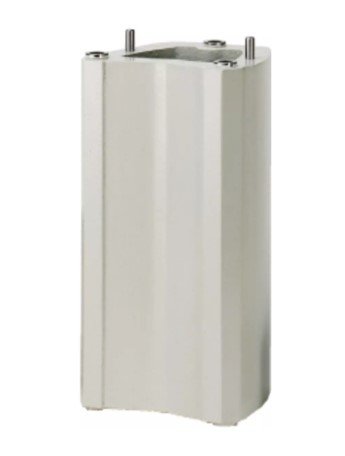

Mitutoyo 515-117 | Riser Block for Universal Height Master | Series 515 | Inch | Accuracy ±0.00004 inch | Height 12.0 inch | Mass 11.3 kg

Mitutoyo 515-117 | Riser Block for Universal Height Master | Series 515 | Inch | Accuracy ±0.00004 inch | Height 12.0 inch | Mass 11.3 kg

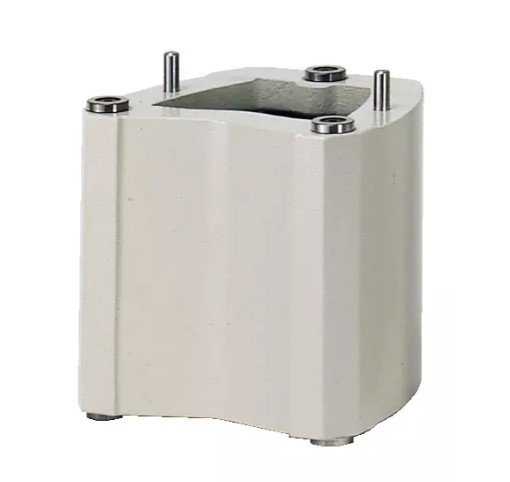

Mitutoyo 515-116 | Riser Block for Universal Height Master | Series 515 | Inch | Accuracy ±0.00002 inch | Height 6.0 inch | Mass 5.7 kg
