Mitutoyo 539-214-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 750 mm | Mass 1.4 kg

Name: Mitutoyo 539-214-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 750 mm | Mass 1.4 kg
Brand: Mitutoyo
SKU: 539-214-40
Availability: InStock

Part Number : 539-214-40

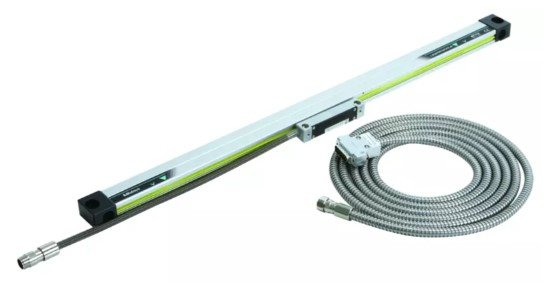

The Mitutoyo 539-214-40 is a high-precision linear scale from the AT113 series, engineered for accurate position measurement in industrial applications. It offers a 750 mm effective measuring length, making it ideal for larger-scale machines and inspection setups. The 3.5-meter cable provides flexibility for diverse installation configurations. With a mass of 1.4 kg, it maintains a balance between sturdiness and ease of handling. This linear scale ensures reliable performance and seamless integration with digital readout systems.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	High-accuracy type (3+3L/1000) µm L = Effective range (mm)
Cable length	: 3.5 m
Length	Effective : 750 mm
Mass (main unit)	1.4 kg
MAX. SPEED	Drive : 120 m Or min
Model Number	AT113-750F
Output	Waveform : Two 90° phase-shifted sinusoidal signals
Protection	Dust/water protection level: IP53
Scale	Scale reference points: 50 mm
Type	Linear Scale

Extended Measuring Range (750 mm):
Offers a long effective measuring length suitable for large machine tools and inspection systems requiring wide-axis coverage.
High-Accuracy Linear Encoder Technology:
Utilizes advanced optical encoder technology to provide precise and stable linear position feedback, essential for high-precision machining and metrology.
Durable and Compact Design:
Weighing 1.4 kg, it is engineered with a slim profile and durable housing, making it ideal for tight spaces and heavy-duty environments.
Flexible 3.5-Meter Cable:
Includes a pre-attached 3.5 m cable that simplifies setup and allows flexible routing within various machine configurations, reducing installation constraints.
Robust Environmental Resistance:
Built to withstand harsh industrial conditions, including exposure to dust and coolant, ensuring long-term reliability and consistent performance.
Easy Integration with DRO Systems:
Fully compatible with Mitutoyo digital readout (DRO) systems and controllers, allowing for seamless integration and system upgrades.
Stable Signal Output:
Ensures interference-resistant signal transmission for accurate readings over longer cable lengths, critical in large-scale industrial setups.
Precision Ground Reference Surfaces:
Mounting surfaces are precisely ground to maintain alignment accuracy and simplify installation on machines requiring exact positioning.
Low Maintenance Requirements:
Designed for minimal wear and low maintenance, contributing to lower total cost of ownership over extended use.
Backed by Mitutoyo Quality and Support:
Manufactured by Mitutoyo, a globally trusted brand known for high-precision metrology tools and excellent after-sales service.
