Mitutoyo 539-215-40 | Linear Scale AT111 | Cable Length 3.5 m | Effective Length 800 mm | Mass 1.4 kg

Name: Mitutoyo 539-215-40 | Linear Scale AT111 | Cable Length 3.5 m | Effective Length 800 mm | Mass 1.4 kg
Brand: Mitutoyo
SKU: 539-215-40
Availability: InStock

Part Number : 539-215-40

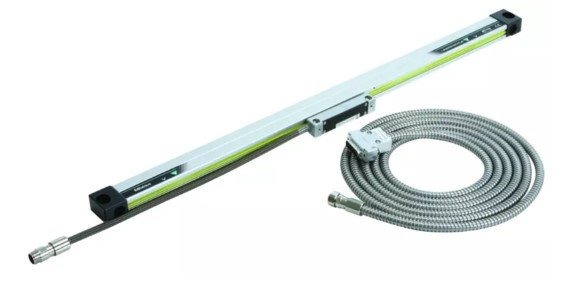

The Mitutoyo 539-215-40 is a high-precision linear scale from the AT111 series, designed for accurate and stable position measurement. It features an effective measuring length of 800 mm, ideal for use with large machines and inspection systems. The scale includes a 3.5-meter cable, allowing flexibility in installation. With a mass of 1.4 kg, it provides a balance of durability and manageable weight. This model ensures consistent performance in demanding industrial environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	High-accuracy type (3+3L/1000) µm L = Effective range (mm)
Cable length	: 3.5 m
Length	Effective : 800 mm
Mass (main unit)	1.4 kg
MAX. SPEED	Drive : 120 m Or min
Model Number	AT113-800F
Output	Waveform : Two 90° phase-shifted sinusoidal signals
Protection	Dust/water protection level: IP53
Scale	Scale reference points: 50 mm
Type	Linear Scale

Extended Measuring Length: 800 mm effective range, suitable for large-scale machinery and precision equipment.
Accurate Position Feedback: Offers high-resolution, stable linear measurement for reliable performance.
3.5-Meter Cable: Provides flexible routing options for installation across various machine layouts.
Robust and Lightweight Design: Weighs 1.4 kg, ensuring ease of handling while maintaining structural integrity.
Engineered for Industrial Use: Built to operate reliably in challenging environments with dust, vibration, or coolant exposure.
