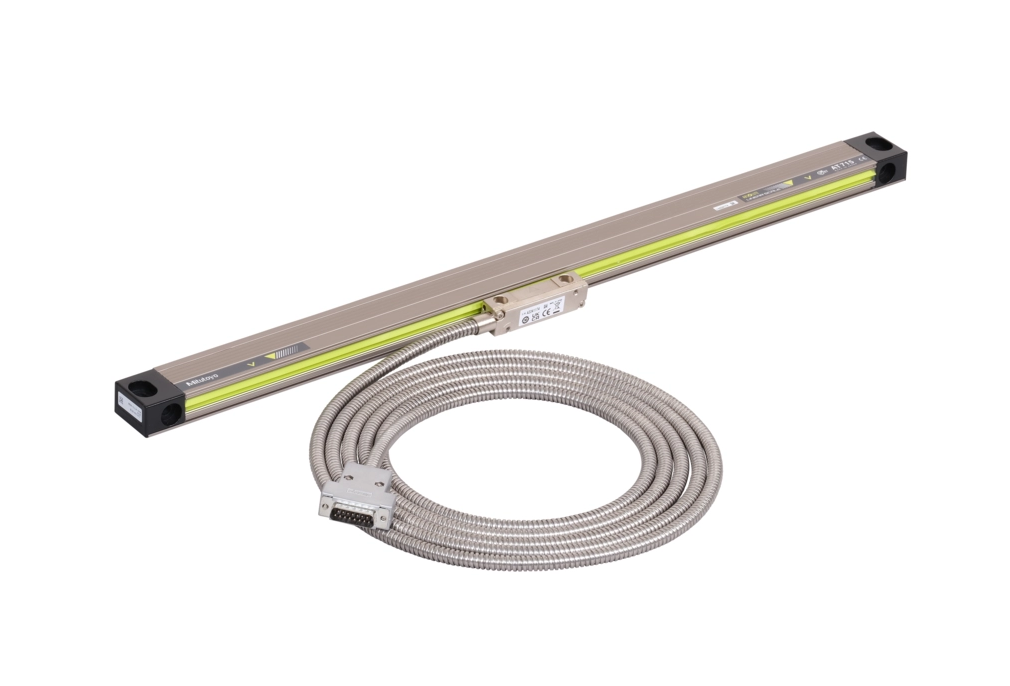

Mitutoyo 539-805N | Linear Scale AT715-300 | Electromagnetic Induction System | Cable Length 3.5 m | Effective Length 300 mm | Mass 0.9 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-805N

The Mitutoyo 539-805N Linear Scale AT715-300 is designed with an electromagnetic induction system for precise measurements. With an effective length of 300 mm, it is ideal for short-range, high-accuracy applications. The 3.5-meter cable provides flexibility for various installation configurations. Weighing 0.9 kg, the scale offers a compact yet stable design. Its durable construction ensures reliable performance in demanding environments. Compatible with Mitutoyo DRO systems, it ensures accurate and consistent measurement results.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-300
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	0.9 kg

Effective Measuring Length: 300 mm, suitable for short-range precision measurements.
High Accuracy: Provides ±5 µm accuracy at 20°C for lengths between 100–500 mm.
Electromagnetic Induction System: Utilizes the ABSOLUTE® system, eliminating the need for reference point setup at every power-on.
Environmental Resistance: IP67-rated, offering protection against dust and water ingress.
Flexible Installation: 3.5-meter armored cable allows for secure and adaptable setup.
Stable Performance: Weighs 0.9 kg, ensuring vibration resistance and stable operation.

DOWNLOAD CATALOG
