Mitutoyo 539-815N | Linear Scale AT715-800 | Electromagnetic Induction System | Cable Length 3.5 m | Effective Length 800 mm | Mass 1.4 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-815N

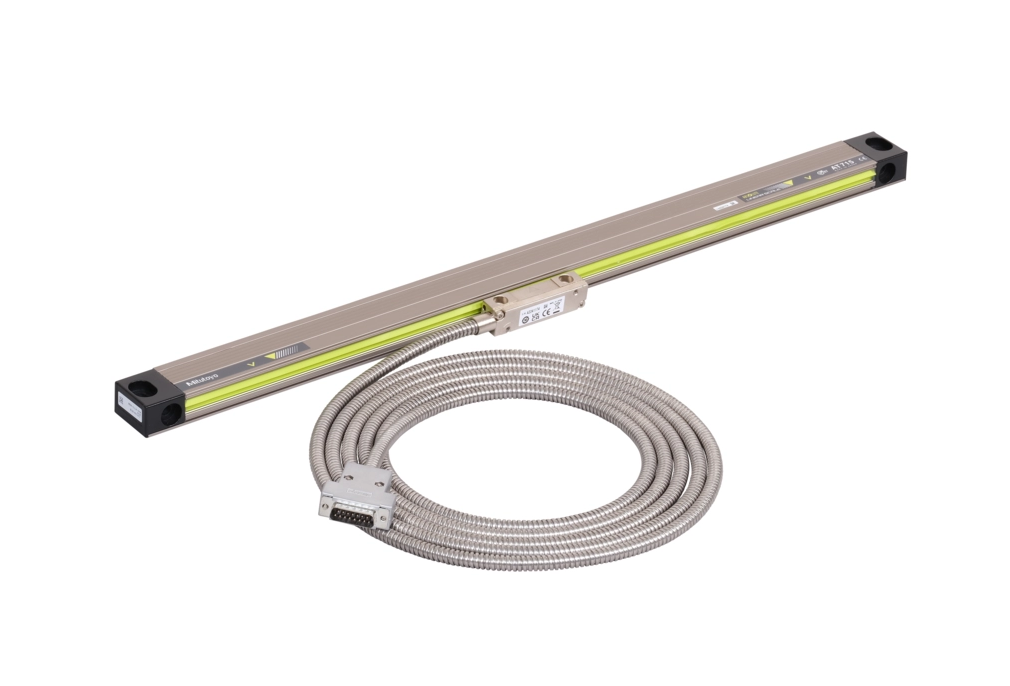

The Mitutoyo 539-815N Linear Scale AT715-800 is a precision measurement tool designed for long-range applications in industrial settings. It utilizes an electromagnetic induction system, ensuring accurate and stable measurements with excellent resistance to contaminants like dust, oil, and coolant. The scale features an effective measuring length of 800 mm, ideal for large machinery or setups. A 3.5-meter cable allows for flexible and convenient installation. With a mass of 1.4 kg, it combines strength and ease of handling for efficient setup. This model is built to deliver reliable, repeatable performance in demanding environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-800
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	1.4 kg

Electromagnetic Induction System – Utilizes the ABSOLUTE® electromagnetic induction principle, offering high environmental protection with an IP67 rating.
No Reference Point Setup Required – Detects and outputs the absolute position, eliminating the need for reference point setup at each power-on.
High Environmental Resistance – Designed to operate in harsh environments, making it suitable for use in machine tools and precision instruments.
Flexible Installation – The scale unit has two mounting directions, allowing easy installation on machining tools with difficult mounting positions.
Compatibility – Compatible with KA series display units, ensuring seamless integration into existing systems.
High-Speed Response – Maximum response speed of 50 m/min, suitable for high-speed measurement applications.a

DOWNLOAD CATALOG
