Part Number : 539-816N

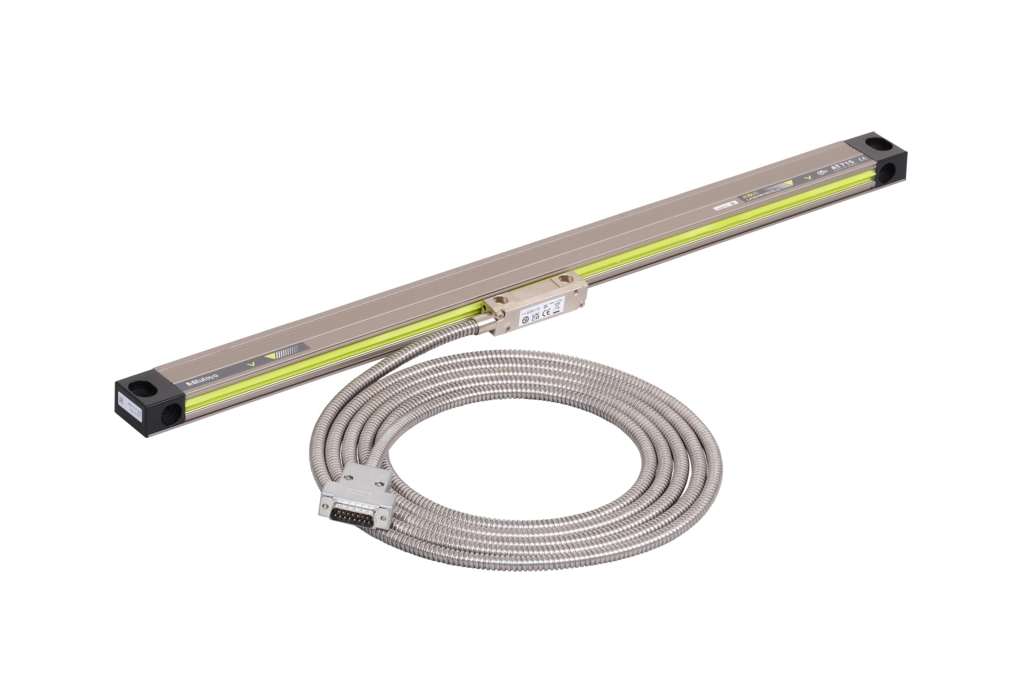

The Mitutoyo 539-816N Linear Scale AT715-900 is a high-precision measurement tool designed for large-scale applications in industrial environments. It operates using an electromagnetic induction system, ensuring stable, accurate measurements while resisting contaminants like dust, oil, and coolant. With an effective measuring length of 900 mm, it is ideal for use in larger machinery and setups. The scale comes with a 3.5-meter cable for easy and flexible installation. Weighing 1.5 kg, it is robust yet easy to handle and install. Built for demanding conditions, this model offers reliable, repeatable performance in precision measurement tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-900
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	1.5 kg

Electromagnetic Induction System – Employs the ABSOLUTE® electromagnetic induction principle, offering high environmental protection with an IP67 rating.
No Reference Point Setup Required – Detects and outputs the absolute position, eliminating the need for reference point setup at each power-on.
High Environmental Resistance – Designed to operate in harsh environments, making it suitable for use in machine tools and precision instruments.
Flexible Installation – The scale unit has two mounting directions, allowing easy installation on machining tools with difficult mounting positions.
Compatibility – Compatible with KA series display units, ensuring seamless integration into existing systems.
High-Speed Response – Maximum response speed of 50 m/min, suitable for high-speed measurement applications.
