Part Number : 539-819N

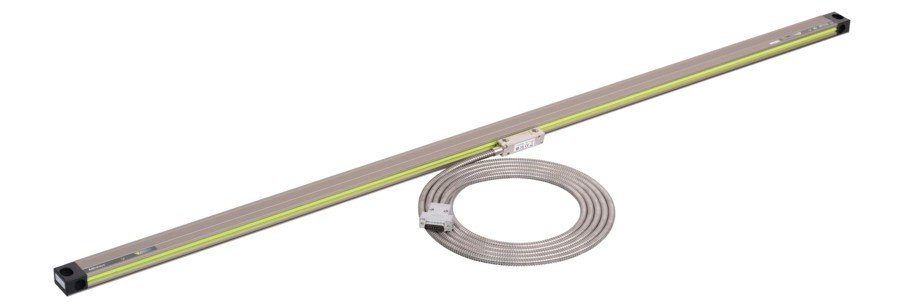

The Mitutoyo 539-819N Linear Scale (model AT715-1200) is a high-precision measurement device using an electromagnetic induction system. It offers a 1200 mm effective measuring length, ideal for long-range linear positioning applications. The unit includes a 5-meter cable for flexible installation. With a total mass of 1.85 kg, it balances durability and ease of handling. Designed for integration with machine tools and precision equipment, it ensures accurate, stable measurements in demanding environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 5 m
Length	Effective : 1200 mm
Mass (main unit)	1.85 kg
MAX. SPEED	Driven : 50 m Or min
Measurement method	Electromagnetic induction system
Model Number	AT715-1200
Resolution	0.001 Or 0.005 (switchable via Counter)
Type	Linear Scale

Electromagnetic Induction System: Delivers stable, high-accuracy measurements unaffected by oil, dirt, or coolant.
Effective Measuring Length: 1200 mm, suitable for large machine tools or long-travel measurements.
Durable Build: Robust construction with a mass of 1.85 kg, designed for industrial environments.
Long Cable Length: Comes with a 5-meter cable for easy and flexible installation on equipment.
High Resistance to Environmental Conditions: Suitable for use in harsh workshop environments due to its non-contact measurement method.
