Part Number : 539-825N

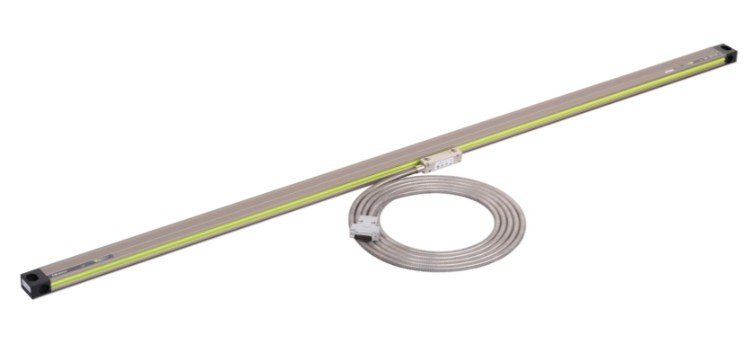

The Mitutoyo 539-825N Linear Scale (model AT715-1800) employs an electromagnetic induction system, ensuring high-precision, non-contact measurements. With an effective measuring length of 1800 mm, it is ideal for applications requiring extended range measurements. The scale includes a 5-meter cable, providing flexibility for installation across various setups. Weighing 2.45 kg, it is designed for durability and ease of handling in industrial environments. This model is compatible with Mitutoyo KA series digital readout systems, ensuring seamless performance and accurate data display.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 5 m
Length	Effective : 1800 mm
Mass (main unit)	2.45 kg
MAX. SPEED	Drive : 50 m Or min
Measuring method	Electromagnetic induction system
Model Number	AT715-1800
Resolution	0.001 Or 0.005 (switchable via Counter)
Type	Linear Scale

Electromagnetic Induction System: Employs Mitutoyo’s ABSOLUTE® technology for high-precision, non-contact measurements.
Effective Measuring Length: Offers an extended 1800 mm range, suitable for large machine tools and extended positioning applications.
Environmental Protection: IP67-rated, ensuring resistance to dust, water, and coolants, making it ideal for harsh workshop environments.
No Reference Point Setup Required: The ABSOLUTE system eliminates the need for reference point setup after each power-on, enhancing operational efficiency.
Compatibility: Designed exclusively for use with Mitutoyo KA series digital readout (DRO) units, ensuring seamless integration and accurate data processing.
