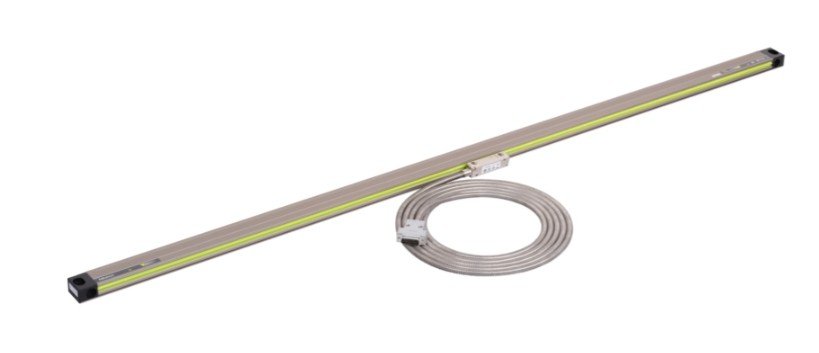

Mitutoyo 539-862N | Linear Scale AT715-2400 | Electromagnetic Induction System | Cable Length 7 m | Effective Length 2400 mm | Mass 3.05 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-862N

The Mitutoyo 539-862N Linear Scale AT715-2400 is a high-precision measuring instrument designed with an electromagnetic induction system for reliable, contamination-resistant performance. It offers an extended effective measuring length of 2400 mm, ideal for large CNC machines and long-travel applications. The scale includes a 7-meter cable, providing enhanced flexibility for complex machine layouts. With a mass of 3.05 kg, it ensures stable installation and operation in industrial environments. This linear scale is well-suited for integration with digital readout systems and automated equipment.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 7 m
Length	Effective : 2400 mm
Mass (main unit)	3.05 kg
MAX. SPEED	50 m Or min
Measuring method	Electromagnetic induction system
Model Number	AT715-2400
Resolution	0.001 Or 0.005 (switchable via Counter)
Type	Linear Scale

Electromagnetic Induction System: Ensures accurate, stable readings with excellent resistance to oil, dust, and coolant.
Effective Measuring Length of 2400 mm: Ideal for large-scale and long-travel machinery applications.
7-Meter Cable Length: Provides greater installation flexibility for complex setups.
Mass of 3.05 kg: Supports robust mounting and vibration resistance.
Durable Construction: Built for long-term use in demanding industrial environments.

DOWNLOAD CATALOG
