Mitutoyo 543-310B-10 | Digital Indicator | Bore Gauge ID-C | Series 543 | Resolution 0.001 mm | Accuracy ± 0.003 mm | Range 12.7 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 543-310B-10

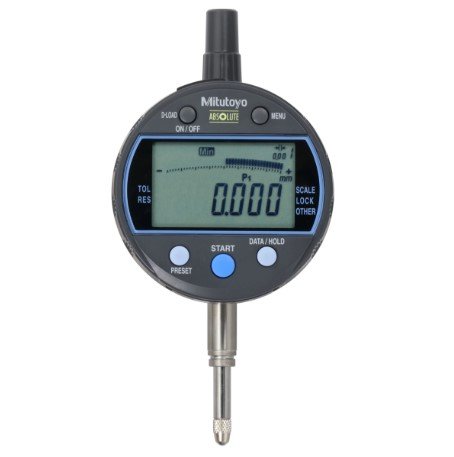

The Mitutoyo 543-310B-10 Digital Indicator from Series 543 is specifically designed for bore gauge applications, delivering high-resolution measurements and reliable accuracy. With a resolution of 0.001 mm and an accuracy of ±0.003 mm, it ensures precise and consistent results for internal diameter inspections. The 12.7 mm measuring range makes it suitable for a wide variety of precision tasks in both industrial and lab settings. Compact and user-friendly, this indicator offers dependable performance where internal measurements are critical.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Battery Life	Standard mode: approx. 1 year, Fast mode: approx. 4.5 month
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.001 mm/0.01 mm
Display	LCD, character height 8 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C112GXB2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	170 g

Bore Gauge Specific: Designed for accurate internal diameter measurements.
High Resolution: 0.001 mm resolution for detailed precision work.
Reliable Accuracy: ±0.003 mm accuracy ensures consistent, trustworthy results.
Versatile Measuring Range: 12.7 mm range suitable for most standard bore gauge applications.
Durable Construction: Built for long-term use in demanding environments.
Ideal for QC & Inspection: Perfect for production lines, workshops, and metrology labs.
