Part Number : 543-350-10

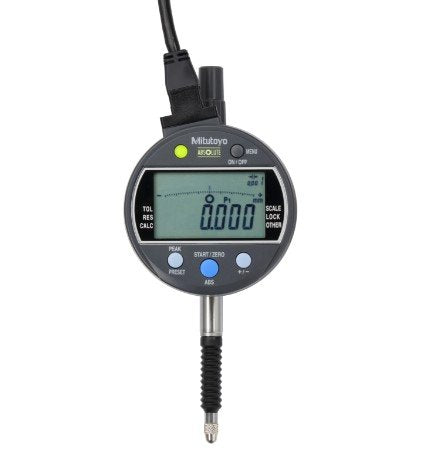

The Mitutoyo 543-350-10 Digital Indicator from Series 543 is a Signal ID-C model designed for high-precision measurement tasks with integrated data output capabilities. Featuring a lug back plate, it allows secure and flexible mounting onto a wide range of fixtures. The indicator provides a measuring range of 0 to 12.7 mm, making it suitable for general-purpose precision inspections. With repeatability of 0.002 mm and accuracy of ±0.003 mm, it ensures reliable and consistent results. Ideal for automated systems and quality control environments, it supports efficient data collection and real-time monitoring.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Digimatic data output	Yes
Digital step	0.001 mm/0.01 mm
Display	LCD, character height 8 mm
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-C112JX2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP54
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	295 g

Signal Output Type: Enables seamless integration with data acquisition and SPC systems.
Lug Back Plate: Ensures secure mounting compatibility with various setups.
Precision Measurement: 0.002 mm repeatability and ±0.003 mm accuracy for dependable results.
Standard Measuring Range: 0–12.7 mm, suitable for a wide range of applications.
Robust Construction: Built for long-lasting performance in demanding environments.
Ideal for Automation: Perfect for inspection lines, quality control, and digital monitoring.
