Mitutoyo 543-350B-10 | Digital Indicator | Signal ID-C | Series 543 | Flat Back Plate | Repeatability 0.002 mm | Accuracy ± 0.003 mm | Range 0 to 12.7 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 543-350B-10

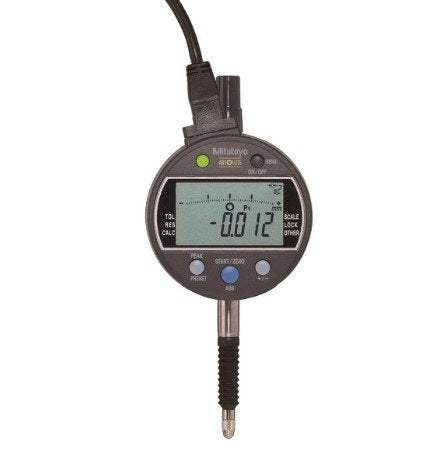

The Mitutoyo 543-350B-10 Digital Indicator from Series 543 is a Signal ID-C model, designed to deliver reliable precision and output functionality for data collection systems. It features a flat back plate for secure and easy mounting onto fixtures and stands. With a measuring range of 0 to 12.7 mm, it suits a wide variety of inspection and alignment tasks. The indicator ensures consistent measurement with a repeatability of 0.002 mm and an accuracy of ±0.003 mm. Ideal for both industrial and laboratory use, it integrates seamlessly into automated and manual setups.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Counting value composition error, overflow error, tolerance limit setting error
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Digital step	0.001 mm/0.01 mm
Display	LCD, character height 8 mm
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-C112JXB2
ON/OFF	Yes
Power Supply	DC 5.0 - 24.0 V
Protection	IP54
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	285 g

Signal Output Type: Supports external data collection and automation systems.
Flat Back Plate: Allows stable and secure mounting for versatile setups.
Reliable Precision: ±0.003 mm accuracy and 0.002 mm repeatability.
Versatile Range: 0-12.7 mm measuring range for various inspection needs.
Durable & Accurate: Designed for high-performance use in demanding environments.
Perfect for Integration: Ideal for SPC systems, inspection lines, and quality labs.
