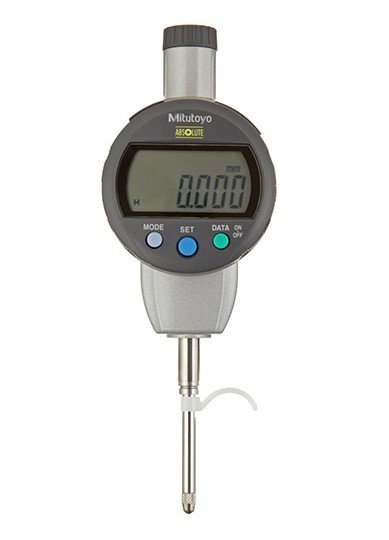

Mitutoyo 543-470B | Digital Indicator ID-C | Series 543 | Digital Step 0.001 mm | Hysteresis 0.002 mm | Range 25.4 mm | Diameter 8 mm | Weight 190 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-470B

The Mitutoyo 543-470B Digital Indicator from Series 543 is a precision measuring tool designed for high-accuracy applications. It features a digital step resolution of 0.001 mm, ensuring fine and reliable measurements. With a measuring range of 25.4 mm, it offers flexibility for various tasks. The indicator maintains consistent performance with a low hysteresis of just 0.002 mm. It comes with an 8 mm stem diameter, making it compatible with standard holders. Weighing only 190 g, it is lightweight and easy to handle during extended use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Analog/Digital	Digital
Battery Life	Approx. 7000 hours
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.001 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.7 N
Model Number	ID-C125XB
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	25.4 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Dial Indicator
Type	EN ISO Standard
Weight	190 g

High-resolution digital display with 0.001 mm step for precise measurements
25.4 mm measuring range suitable for a wide variety of applications
Low hysteresis of 0.002 mm ensures consistent and repeatable readings
8 mm stem diameter fits standard indicator holders and fixtures
Lightweight design at 190 g for ease of handling and portability
Part of Mitutoyo’s reliable Series 543, known for durability and accuracy
