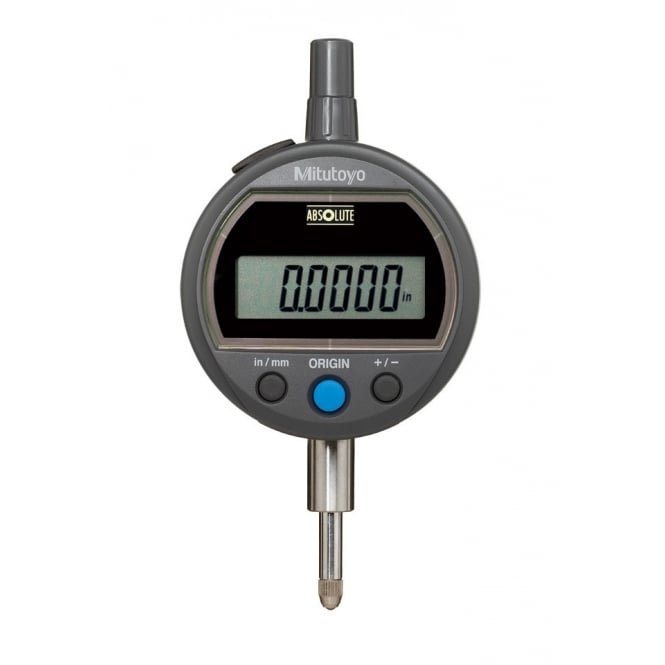

Mitutoyo 543-506B ABSOLUTE Digimatic ID-SS Solar Indicator 12.7mm / .5", Flat back

Name: Mitutoyo 543-506B ABSOLUTE Digimatic ID-SS Solar Indicator 12.7mm / .5", Flat back
Brand: Mitutoyo
SKU: 543-506B
Availability: InStock

Part Number : 543-506B

A Mitutoyo solar powered, moderate resolution digital indicator with a flat back. No battery needed in normal levels of illumination and a power reserve ensures operation for more than 3 hours in a dimly lit environment (less than 40 Lux) from a fully charged state. ABSOLUTE System scale for error free, high-speed measurement. Digimatic data output.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	1.5N or less
Measuring Units	Millimetre / Inch
Range	12.7mm / .5 inch
Resolution	0.01mm / .0005 inch
SKU	543-506B
Stem Dia	8mm
Type	Plunger

Solar power supply. An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate under minimum light conditions of 40 lux – lower than the level of warehouse lighting.
• Built-in recharger. The large-capacity built-in recharger allows you to use the indicator for long periods of time under light conditions below the minimum level.*
• User-friendly operation. All functions can be accessed by using the large buttons on the front of the indicator.
• Origin recorded even if display disappears. The indicator includes an ABSOLUTE sensor that allows the previously set origin to be stored even if the display disappears due to insufficient light, making it easy to resume measurement. This feature makes ID-SS ideal for long-time or multi-point measurement. ID-SS can be used in standard work environments.
