Part Number : 543-561E

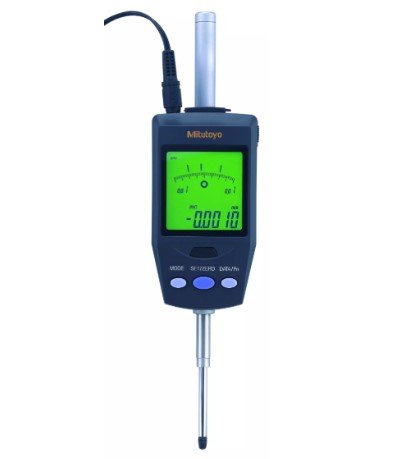

The Mitutoyo 543-561E is a high-precision digital indicator from the advanced ID-H Series 543, designed for demanding measurement tasks. It offers a measuring range of 0 to 30.4 mm, ideal for extended applications. With a resolution of 0.0005 mm, it delivers highly detailed and accurate readings. The indicator provides exceptional accuracy of ±0.0015 mm, meeting rigorous quality standards. It comes equipped with a BS AC adapter for continuous power supply during extended use. Built with Mitutoyo's superior engineering, it’s perfect for high-accuracy lab and production environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Counting value composition error, overflow error, tolerance setting error
Analog/Digital	Digital
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm Or 0.001 mm
Display	LCD with red/green backlight, character height 9.5 mm
GO/+/-NG judgement	Yes
Hysteresis	0.0015 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.0015 mm
Max. Response Speed	1000 mm/s
Measuring Force	¢°¤2 N
Model Number	ID-H0530
ON/OFF	Yes
Power Supply	AC adapter 6 V DC, 2A
Protection	IP30
Range	30.4 - 30.4 mm
Repeatability	0.001 mm
Scale	Photoelectric linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator

Measuring Range: 0 to 30.4 mm for extended measurement capabilities
Resolution: Ultra-fine 0.0005 mm for high-precision applications
Accuracy: ±0.0015 mm for dependable, detailed measurements
Power Supply: Includes BS AC adapter for continuous operation
Display: Clear digital LCD for fast and accurate readouts
Series: Part of the ID-H Series 543, built for precision and performance
