Part Number : 543-563E

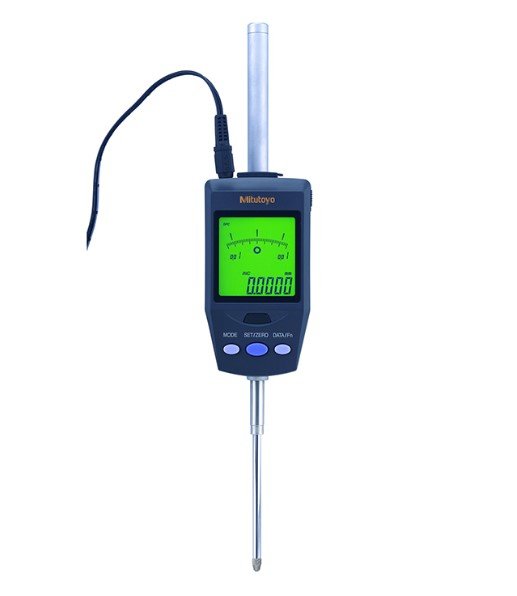

The Mitutoyo 543-563E is a high-performance digital indicator from the ID-H Series 543, designed for precision measurement over a longer range. It features a measuring range of 0 to 60.9 mm, ideal for larger components and setups. With an ultra-fine resolution of 0.0005 mm, it ensures detailed and accurate readings. The indicator provides a solid accuracy of ±0.0025 mm, maintaining consistency across extended measurements. It includes a BS AC adapter for stable, continuous power during long operation cycles. Built to Mitutoyo’s exacting standards, it’s perfect for high-precision industrial and lab environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Counting value composition error, overflow error, tolerance setting error
Analog/Digital	Digital
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm Or 0.001 mm
Display	LCD with red/green backlight, character height 9.5 mm
GO/+/-NG judgement	Yes
Hysteresis	0.0025 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.0025 mm
Max. Response Speed	1000 mm/s
Measuring Force	¢°¤2.5 N
Model Number	ID-H0560
ON/OFF	Yes
Power Supply	AC adapter 6 V DC, 2A
Protection	IP30
Range	60.9 - 60.9 mm
Repeatability	0.001 mm
Scale	Photoelectric linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator

Measuring Range: 0 to 60.9 mm for large-scale precision measurements
Resolution: 0.0005 mm for highly detailed measurement results
Accuracy: ±0.0025 mm ensures consistent and reliable performance
Power Supply: Supplied with BS AC adapter for uninterrupted use
Display: Clear digital LCD for easy data visibility
Series: From the ID-H Series 543, ideal for advanced inspection tasks
