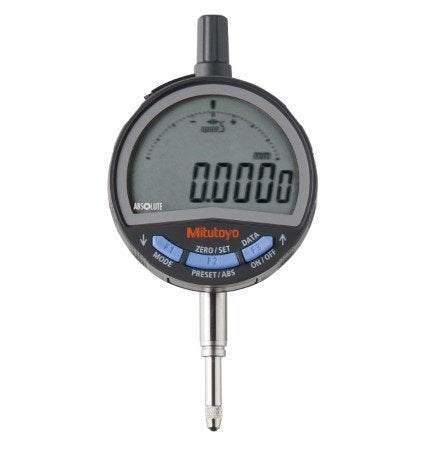

Mitutoyo 543-700 | Digital Indicator ID-C | Series 543 | Digital step 0.0005 mm | Hysteresis 0.002 mm | Range 12.7 mm | Diameter 8 mm | Weight 175 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-700

The Mitutoyo 543-700 Digital Indicator from Series 543 is engineered for ultra-precise measurement tasks. It features a fine digital step resolution of 0.0005 mm, ideal for high-accuracy applications. With a measuring range of 12.7 mm, it provides dependable performance for smaller displacement measurements. The indicator maintains minimal deviation with a hysteresis of just 0.002 mm. Its 8 mm stem diameter ensures compatibility with standard fixtures. Weighing only 175 g, it is compact, lightweight, and easy to handle.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C0512NX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	175 g

Ultra-high resolution with a digital step of 0.0005 mm for precision tasks
12.7 mm measuring range suited for fine, detailed measurements
Low hysteresis of 0.002 mm ensures reliable repeatability
Standard 8 mm stem diameter for easy fixture compatibility
Lightweight at just 175 g for comfortable, prolonged use
Durable and accurate, part of the trusted Mitutoyo Series 543
