Mitutoyo 543-700B | Digital Indicator ID-C | Series 543 | Digital Step 0.0005 mm | Hysteresis 0.002 mm | Range 12.7 mm | Diameter 8 mm | Weight 165 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-700B

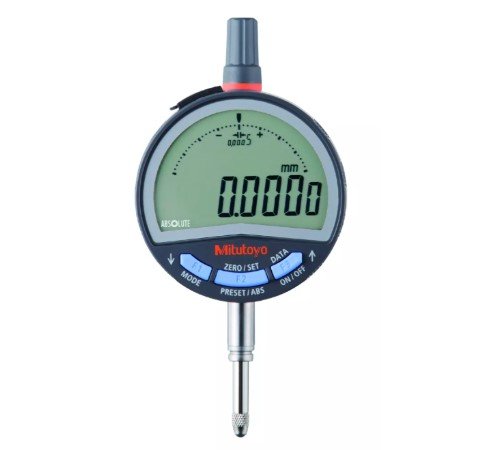

The Mitutoyo 543-700B Digital Indicator from Series 543 is designed for precision engineering applications requiring ultra-fine resolution. It offers a digital step of 0.0005 mm, making it ideal for highly accurate measurements. With a range of 12.7 mm, it handles delicate displacement tasks efficiently. A hysteresis of just 0.002 mm ensures excellent repeatability and measurement consistency. The 8 mm stem diameter fits standard indicator holders with ease. Weighing only 165 g, it is both lightweight and ergonomically designed for convenient use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C0512NXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	165 g

Ultra-fine digital resolution of 0.0005 mm for high-precision measurements
12.7 mm measuring range suitable for detailed and sensitive applications
Low hysteresis of 0.002 mm ensures repeatable and accurate readings
Standard 8 mm stem diameter for easy integration with various holders
Compact and lightweight design at 165 g for enhanced usability
Part of Mitutoyo’s trusted Series 543, known for accuracy and durability

DOWNLOAD CATALOG
