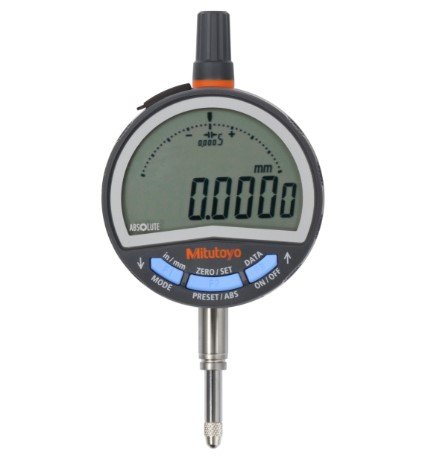

Mitutoyo 543-701 | Digital Indicator ID-C | Series 543 | Digital Step 0.00005 Inch | Hysteresis 0.00008 Inch | Range 0.5 Inch | Diameter 8 mm | Weight 175 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-701

The Mitutoyo 543-701 Digital Indicator from Series 543 is built for high-precision inch-based measurements. It features a fine digital step of 0.00005 inch, ideal for applications requiring exceptional accuracy. With a measuring range of 0.5 inch, it handles small displacement measurements efficiently. A low hysteresis of 0.00008 inch ensures consistent and repeatable results. Its 8 mm stem diameter allows for easy integration with standard indicator holders. Weighing 175 g, it combines accuracy with a lightweight and user-friendly design.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00002 in/0.00005 in/0.0001 in/0.0005 in Or 0.0005 mm/0.001 mm/0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.00008 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.00012 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-C0512MNX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.00008 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	175 g

Ultra-fine digital step of 0.00005 inch for high-precision measurements
0.5-inch measuring range is ideal for detailed and accurate applications
Low hysteresis of 0.00008 inch ensures repeatable and reliable readings
Standard 8 mm stem diameter for compatibility with most holders and fixtures
Lightweight design at 175 g for ease of handling and operation
Part of the trusted Mitutoyo Series 543, known for quality and precision
