Part Number : 543-705

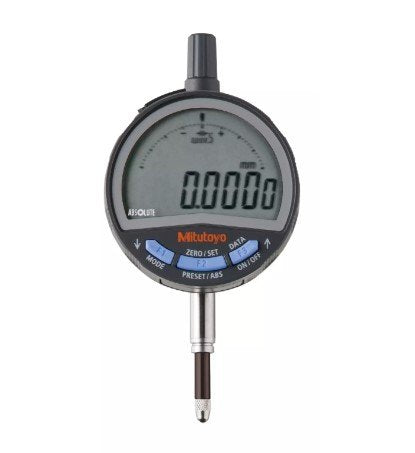

The Mitutoyo 543-705 Digital Indicator from Series 543 is built for precise measurement tasks where fine resolution is essential. It features a digital step of 0.0005 mm, enabling highly accurate and detailed readings. With a measuring range of 12.7 mm, it is well-suited for precision engineering applications. A low hysteresis value of 0.002 mm ensures consistent and repeatable measurements. The 8 mm stem diameter allows easy mounting in standard indicator holders. Weighing 170 g, it offers a balanced combination of portability and performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	0.4 - 0.7 N
Model Number	ID-C0512CNX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	170 g

High-precision digital step of 0.0005 mm for ultra-accurate measurements
12.7 mm measuring range is ideal for detailed inspection tasks
Low hysteresis of 0.002 mm ensures measurement reliability and repeatability
8 mm stem diameter compatible with standard indicator fixtures
Lightweight design at 170 g for comfortable handling during extended use
Part of the dependable Mitutoyo Series 543, known for quality and durability
