Part Number : 543-705B

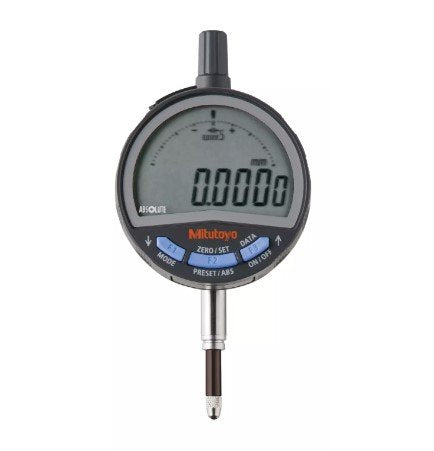

The Mitutoyo 543-705B Digital Indicator from Series 543 is crafted for high-precision measurement in compact setups. It offers an ultra-fine digital step of 0.0005 mm, making it ideal for detailed inspection work. With a measuring range of 12.7 mm, it provides reliable performance in tight tolerances. The low hysteresis of 0.002 mm ensures repeatable and consistent results. Its standard 8 mm stem diameter allows easy mounting on various fixtures. Weighing just 160 g, it is lightweight and convenient for everyday use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	0.4 - 0.7 N
Model Number	ID-C0512CNXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	160 g

Ultra-fine digital resolution of 0.0005 mm for high-precision measurements
12.7 mm measuring range suited for detailed and sensitive applications
Low hysteresis of 0.002 mm for consistent and repeatable results
Standard 8 mm stem diameter ensures compatibility with various holders
Lightweight at just 160 g for enhanced portability and ease of use
Part of the reliable Mitutoyo Series 543, known for accuracy and durability
