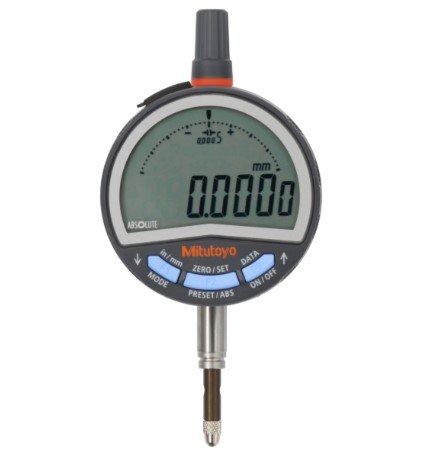

Mitutoyo 543-706 | Digital Indicator ID-C | Series 543 | Digital Step 0.00002 Inch | Hysteresis 0.00008 Inch | Range 0.5 Inch | Diameter 8 mm | Weight 170 g
The Mitutoyo 543-706 Digital Indicator ID-C from Series 543 offers high-precision measurement with a resolution of 0.00002 inch, making it ideal for detailed inspection tasks. It features a compact design with an 8 mm stem diameter and weighs just 170 grams, ensuring easy handling and integration into various setups. The digital display ensures clear and accurate readings, while its measuring range extends up to 0.5 inch. With a minimal hysteresis of 0.00008 inch, it delivers reliable repeatability and consistency. This indicator is well-suited for both professional and industrial precision measurement applications. Its durable construction and advanced electronics make it a dependable tool in any quality control environment.

Free UAE shipping available
- Specifications
- Features
- Downloads
Alarm | Low voltage, setting errors, sensor error, display overflow a.s.o. |
Analog/Digital | Digital |
Auto shut-off | Yes |
Battery Life | Approx. 2700 hours (continuous use) |
Contact point | Carbide Ball |
Data hold function | Yes |
Digimatic data output | Yes |
Digital step | 0.00002 in/0.00005 in/0.0001 in/0.0005 in or 0.0005 mm/0.001 mm/0.01 mm |
Display | LCD, character height 11 mm, 330° rotatable |
GO/+/-NG judgement | Yes |
Hysteresis | 0.00008 Inch or 0.002 mm |
Inch-Metric | Inch/Metric |
Lock function | Yes |
Max. permissible error | E MPE: +/-0.00012 Inch or 0.003 mm |
Max. Response Speed | Unlimited |
Measuring Force | 0.4 - 0.7 N |
Model Number | ID-C0512CMNX |
ON/OFF | Yes |
Power Supply | 1 battery CR2032 |
Protection | IP42 |
Range | 0.5 Inch or 12.7 mm |
Repeatability | 0.00008 Inch or 0.002 mm |
Scale | Electrostatic capacitance type absolute linear encoder |
Series | 543 |
Stem Dia | 8 mm |
Thread type | M2.5x0.45 |
Type | Digital Indicator |
Type | EN ISO Standard |
Weight | 170 g |
- High Resolution: Offers a fine digital resolution of 0.00002 inch for precise measurements.
- Compact & Lightweight: 8 mm stem diameter and 170 g weight for easy setup and portability.
- Measurement Range: Covers up to 0.5 inch, suitable for a variety of inspection tasks.
- Low Hysteresis: Just 0.00008 inch, ensuring excellent repeatability and accuracy.
- Clear Digital Display: Large, easy-to-read LCD for quick and reliable readings.
- Durable Build: Built to withstand industrial environments with consistent performance.
