Part Number : 543-706B

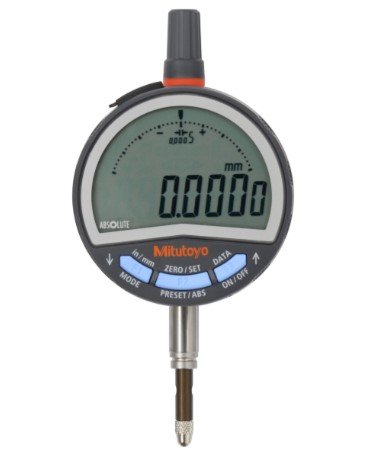

The Mitutoyo 543-706B Digital Indicator ID-C from Series 543 is designed for ultra-precise measurement with a digital step of 0.00002 inch. It features zero hysteresis, ensuring highly consistent and repeatable results in demanding applications. With a measuring range of 0.5 inch, it provides versatility for various precision tasks. The indicator has a compact 8 mm stem diameter and weighs only 160 grams, making it easy to handle and install. Its clear digital display offers fast, accurate readings with minimal user effort. Built for reliability, it’s ideal for both workshop and laboratory environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.00002 in/0.00005 in/0.0001 in/0.0005 in or 0.0005 mm/0.001 mm/0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.00008 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.00012 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	0.4-0.7 N
Model Number	ID-C0512CMNXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 inch or 12.7 mm
Repeatability	0.00008 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	160 g

Ultra-High Precision: Digital step of 0.00002 inch for highly detailed measurements.
Zero Hysteresis: Ensures maximum repeatability and measurement reliability.
Compact Design: 8 mm stem diameter and lightweight at just 160 grams.
0.5 Inch Range: Suitable for a wide variety of precision measuring tasks.
Clear LCD Display: Easy-to-read digital screen for quick and accurate readings.
Robust & Reliable: Engineered for consistent performance in industrial and lab settings.
