Part Number : 543-710

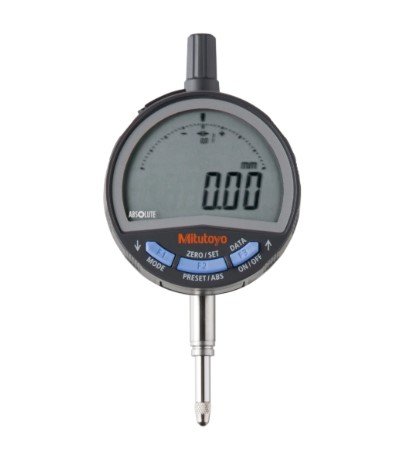

The Mitutoyo 543-710 Digital Indicator from Series 543 is a robust tool designed for general-purpose measurement tasks. It features a digital step of 0.01 mm, providing clear and straightforward readings for routine inspections. With a measuring range of 12.7 mm, it accommodates a variety of applications. The hysteresis of 0.02 mm ensures acceptable consistency for standard tolerances. Its 8 mm stem diameter allows for easy installation in compatible fixtures. Weighing 170 g, it offers a practical balance of durability and ease of use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤0.9 N
Model Number	ID-C1012NX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	170 g

Digital step of 0.01 mm for clear, easy-to-read measurements
12.7 mm measuring range suitable for general-purpose applications
Hysteresis of 0.02 mm provides acceptable repeatability for standard tasks
Standard 8 mm stem diameter for broad fixture compatibility
Durable and lightweight design at 170 g for everyday use
Part of the reliable Mitutoyo Series 543, known for its consistent performance
