Mitutoyo 543-710B | Digital Indicator ID-C | Series 543 | Digital Step 0.01 mm | Hysteresis 0.02 mm | Range 12.7 mm | Diameter 8 mm | Weight 160 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-710B

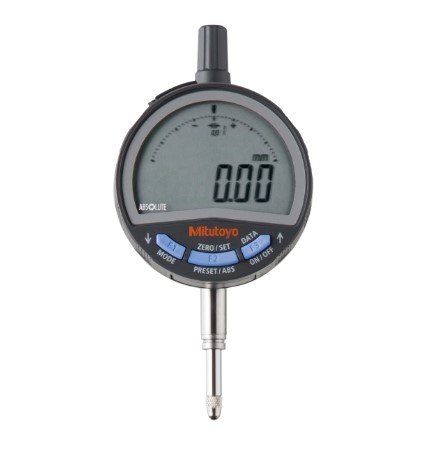

The Mitutoyo 543-710B Digital Indicator from Series 543 is a dependable instrument for everyday measurement tasks. It features a digital step of 0.01 mm, offering easy-to-read and accurate results for general applications. With a measuring range of 12.7 mm, it covers a wide variety of standard measuring needs. A hysteresis of 0.02 mm ensures consistent performance in typical tolerance settings. The 8 mm stem diameter makes it compatible with most standard holders. Weighing just 160 g, it is lightweight and convenient for frequent use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤0.9 N
Model Number	ID-C1012NXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	160 g

Digital resolution of 0.01 mm for clear and accurate measurements
12.7 mm measuring range ideal for general-purpose applications
Hysteresis of 0.02 mm ensures reliable performance in standard tasks
Standard 8 mm stem diameter for easy integration with various fixtures
Lightweight at 160 g for comfortable handling and portability
Part of the trusted Mitutoyo Series 543, known for durability and precision

DOWNLOAD CATALOG
