Part Number : 543-716

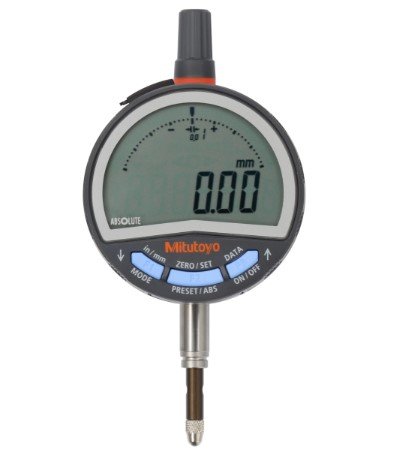

The Mitutoyo 543-716 Digital Indicator ID-C from Series 543 is a precision measuring instrument ideal for routine inspection tasks. It offers a digital step of 0.0005 inch, delivering dependable accuracy for a wide range of applications. With a measuring range of 0.5 inch and a slim 8 mm stem diameter, it fits easily into standard setups. The indicator has a hysteresis of 0.001 inch, ensuring consistent and repeatable measurements. Weighing just 165 grams, it is lightweight and easy to handle. Its clear digital display enhances usability in both workshop and production environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤0.2 - 0.5 N
Model Number	ID-C1012CMNX
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	165 g

Precise Readings: Digital step of 0.0005 inch for accurate measurement in everyday applications.
Consistent Performance: Hysteresis of 0.001 inch ensures reliable repeatability.
Standard Measuring Range: Covers up to 0.5 inch for versatile usage.
Slim Profile: 8 mm stem diameter allows easy integration into fixtures and setups.
Lightweight Design: Weighs only 165 g for comfortable handling and installation.
Clear Display: Large, easy-to-read LCD screen enhances user efficiency.
