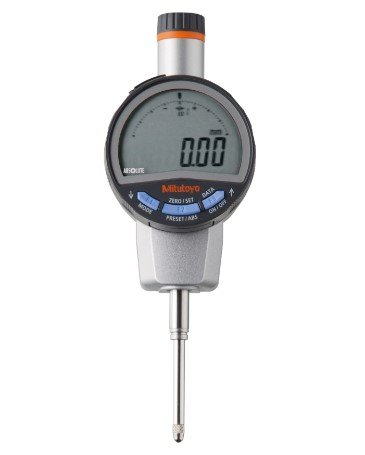

Mitutoyo 543-725B | Digital Indicator ID-C | Series 543 | Digital Step 0.01 mm | Hysteresis 0.02 mm | Range 25.4 mm | Diameter 8 mm | Weight 190 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-725B

The Mitutoyo 543-725B Digital Indicator from Series 543 is designed for precision measurement with a 0.01 mm digital step, providing clear and accurate readings. It offers a measuring range of 25.4 mm, making it suitable for a wide range of applications. The hysteresis of 0.02 mm ensures repeatable and consistent performance. With an 8 mm stem diameter, it is compatible with most standard holders. Weighing 190 g, it offers a solid balance of durability and ease of handling. This indicator is ideal for general-purpose use in various precision tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.8 N
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	25.4 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	190 g

Digital step of 0.01 mm for precise and clear measurements
25.4 mm measuring range suitable for a wide variety of applications
Hysteresis of 0.02 mm ensures consistent and reliable repeatability
Standard 8 mm stem diameter for compatibility with most indicator holders
Weighs 190 g, providing a solid and durable yet lightweight design
Part of the trusted Mitutoyo Series 543, known for accuracy and versatility
