Part Number : 543-730B

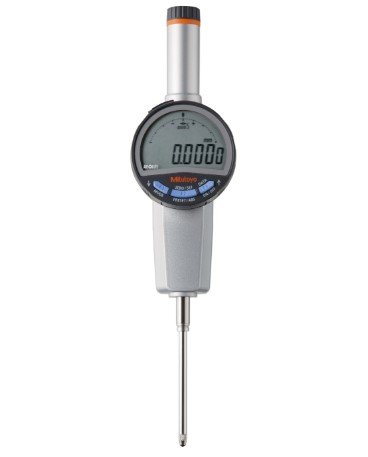

The Mitutoyo 543-730B Digital Indicator from Series 543 is engineered for ultra-precise, long-range measurement tasks. It features a high-resolution digital step of 0.0005 mm, ideal for applications requiring extreme accuracy. With an extended measuring range of 50.8 mm, it accommodates a wide variety of inspection needs. A low hysteresis of 0.002 mm ensures excellent repeatability and reliability. The standard 8 mm stem diameter allows for easy integration with most holders. Weighing 260 g, it offers a sturdy yet manageable design for precision work.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.005 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.3 N
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	50.8 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	260 g

Ultra-high resolution with a digital step of 0.0005 mm for precise measurements
Extended 50.8 mm measuring range suitable for large displacement applications
Low hysteresis of 0.002 mm ensures consistent and repeatable accuracy
Standard 8 mm stem diameter for easy compatibility with various holders
Robust yet manageable design with a weight of 260 g for stable use
Part of the reliable Mitutoyo Series 543, trusted for precision and durability
