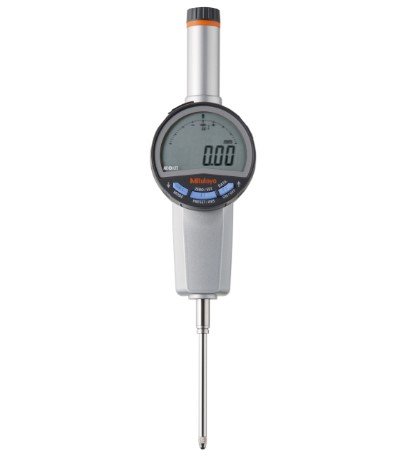

Mitutoyo 543-735B | Digital Indicator ID-C | Series 543 | Digital Step 0.01 mm | Hysteresis 0.02 mm | Range 50.8 mm | Diameter 8 mm | Weight 245 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-735B

The Mitutoyo 543-735B Digital Indicator from Series 543 is designed for dependable measurement across extended ranges. It features a digital step of 0.01 mm, delivering clear and accurate readings suitable for general-purpose applications. With a generous measuring range of 50.8 mm, it supports larger displacement measurements with ease. A hysteresis of 0.02 mm ensures consistent and repeatable results. The standard 8 mm stem diameter allows for easy mounting in most indicator holders. Weighing 245 g, it offers a sturdy build while remaining comfortable to handle.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.04 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.3 N
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	50.8 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	245 g

Digital step of 0.01 mm for clear and accurate general-purpose measurements
Extended 50.8 mm measuring range ideal for large displacement tasks
Hysteresis of 0.02 mm ensures reliable and repeatable performance
Standard 8 mm stem diameter compatible with most indicator holders
Sturdy yet manageable design with a weight of 245 g
Part of the trusted Mitutoyo Series 543, known for quality and precision
