Part Number : 543-736B

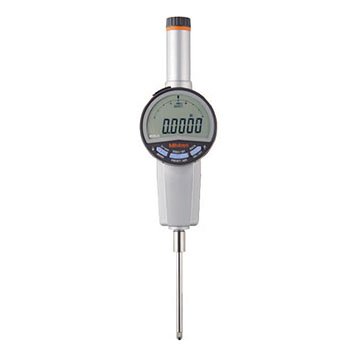

The Mitutoyo 543-736B Digital Indicator ID-C from Series 543 is a reliable precision tool designed for a wide range of measurement tasks. It features a digital step of 0.0005 inch, offering accurate results for general inspection needs. With an extended 2-inch measuring range, it is suitable for applications requiring deeper measurement capacity. The unit maintains consistent accuracy with a hysteresis of 0.001 inch. Its 8 mm stem diameter ensures compatibility with standard setups, while the 245 g weight provides a sturdy yet manageable build. A clear digital display enhances ease of use in both industrial and workshop environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.0015 Inch or 0.04 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.3 N
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	2 Inch or 50.8 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	245 g

Accurate Readings: Digital step of 0.0005 inch for dependable measurement precision.
Extended Measuring Range: A 2-inch range accommodates a variety of applications.
Reliable Repeatability: Hysteresis of 0.001 inch ensures consistent performance.
Slim Stem Design: 8 mm diameter allows easy mounting in standard fixtures.
Durable Yet Lightweight: Weighs 245 g, offering solid construction without bulk.
Clear LCD Display: Easy-to-read digital screen for quick and efficient measurements.
