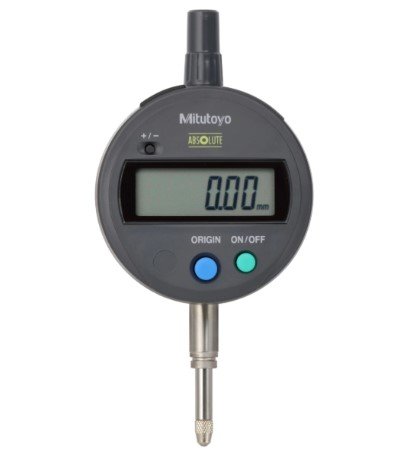

Mitutoyo 543-781-10 | Digital Indicator ID-S | Series 543 | Digital Step 0.01 mm | Hysteresis 0.02 mm | Range 12.7 mm | Diameter 8 mm | Weight 150 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-781-10

The Mitutoyo 543-781-10 Digital Indicator from the ID-S Series 543 is a high-precision tool designed for reliable measurements in a variety of applications. It offers a measuring range of 12.7 mm with a digital step resolution of 0.01 mm, providing accurate and easily readable results. With a hysteresis of 0.02 mm, it ensures stable and repeatable performance, even in demanding environments. The indicator features an 8 mm stem diameter, making it compatible with standard holders for easy integration. Weighing 150 g, it provides a balance of stability and ease of handling, making it ideal for both workshop and inspection tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.02 mm
Inch-Metric	Metric
Max. permissible error	E MPE: 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S1012X2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	12.7 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	150 g

Measurement Range: 12.7 mm – suitable for a wide range of precision measurement tasks
Resolution: 0.01 mm – delivers clear, accurate digital readings
Hysteresis: 0.02 mm – ensures consistent and repeatable measurements
Stem Diameter: 8 mm – compatible with standard indicator holders
Weight: 150 g – provides stability for precise, controlled use
Series 543 Design: Compact, durable, and ideal for use in both workshop and inspection environments
