Part Number : 543-782B-10

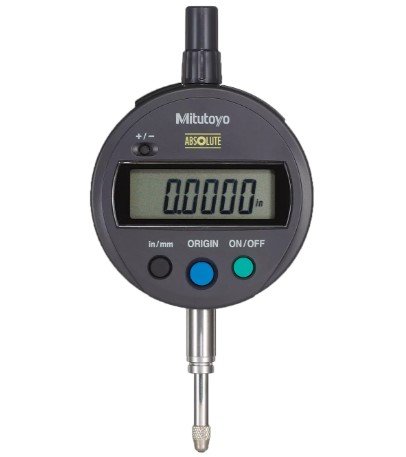

The Mitutoyo 543-782B-10 Digital Indicator (ID-S Series) offers high-precision measurements with a digital step of 0.0005 inch and a low hysteresis of 0.001 inch. It features a range of 0.5 inch, making it ideal for small-scale precision tasks. The compact 8 mm diameter design ensures easy handling in tight spaces. Weighing only 140 g, it is lightweight yet durable for frequent use. The digital readout delivers clear, error-free readings, improving measurement accuracy. Suitable for various precision applications in machining and quality control.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S1012MXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	140 g

High Resolution: Provides a digital step of 0.0005 inch, ensuring ultra-precise measurements.
Low Hysteresis: Features a hysteresis of 0.001 inch, offering stable and repeatable measurements.
Measuring Range: 0.5 inch range, making it ideal for small-scale, high-precision measurement tasks.
Compact Size: With an 8 mm diameter, the indicator is designed to be easily used in tight spaces.
Lightweight: Weighs only 140 g, offering ease of handling without sacrificing durability.
Digital Display: The clear digital readout reduces errors, enhancing accuracy in precision measurements.

DOWNLOAD CATALOG
