Mitutoyo 543-790-10 | Digital Indicator ID-S | Lug Back Plate | Series 543 | Graduation 0.001mm | Accuracy ± 0.003mm | Range 12.7mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-790-10

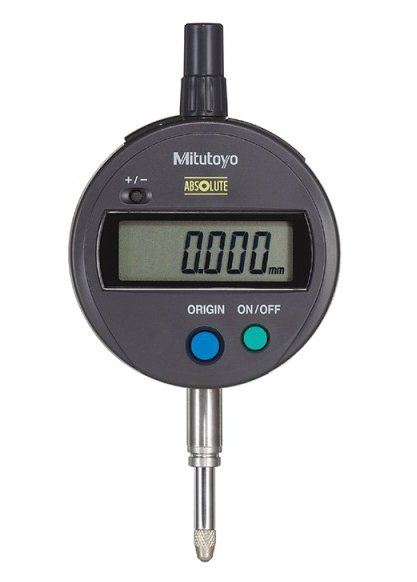

The Mitutoyo 543-790-10 Digital Indicator ID-S offers high precision for precise measurements. It features a lug back plate for easy mounting and is part of the Series 543 lineup. With a graduation of 0.001mm, it ensures detailed readings for fine measurements. The accuracy is ±0.003mm, making it reliable for demanding tasks. Its measuring range extends up to 12.7mm, accommodating a variety of applications. This indicator is ideal for users who require consistent and accurate measurement results.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	0.003 mm
Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type)
Contact point	Carbide ball
Data Output	Digimatic: Yes
Digital step	0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.002 mm
Inch-Metric	Metric
Measuring Force	¢°¤1.5 N
Model Number	ID-S112X2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Response Time	Unlimited
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator ID-S
Weight	150 g

High Precision: Graduation of 0.001mm for detailed and accurate measurements.
Lug Back Plate: Easy to mount for convenience in various setups.
High Accuracy: Accuracy of ±0.003mm for reliable results.
Measuring Range: A 12.7mm range suitable for various measurement tasks.
Digital Display: Clear, easy-to-read digital output for quick data interpretation.
Series 543: Part of Mitutoyo's trusted Series 543, known for quality and durability.
