Mitutoyo 543-851E | Digital Indicator ID-F | With BS AC-Adapter | Series 543 | Resolution 0.0005 mm | Accuracy ± 0.002 mm | Range 0 to 25.4 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 543-851E

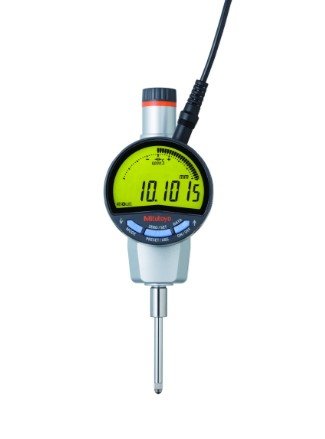

The Mitutoyo 543-851E is a precision digital indicator from the ID-F Series 543, designed for accurate and consistent measurements. It offers a measuring range of 0 to 25.4 mm, making it ideal for a variety of inspection tasks. With a fine resolution of 0.0005 mm, it delivers highly detailed readouts. The indicator ensures accuracy of ±0.002 mm, maintaining reliability across a wide range. It comes equipped with a BS AC adapter, providing continuous power for extended operations. Built to Mitutoyo’s trusted standards, it’s perfect for both laboratory and shop floor environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01mm
Display	LCD with red/green backlight, character height 11 mm
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.0025 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.8 N
Model Number	ID-F0525NX
ON/OFF	Yes
Power Supply	AC adapter 5,9V, 2A
Protection	IP30
Range	25.4 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	240 g

Measuring Range: 0 to 25.4 mm for mid-range precision applications
Resolution: 0.0005 mm for high-detail measurement accuracy
Accuracy: ±0.002 mm for dependable performance in quality control
Power Supply: Includes BS AC adapter for uninterrupted use
Display: Digital LCD for fast and easy measurement reading
Series: Part of the ID-F Series 543, combining precision with versatility
