Part Number : 543-855-D

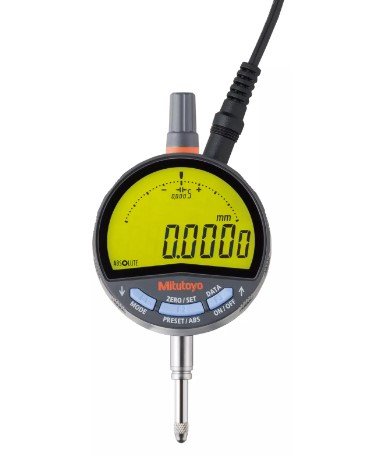

The Mitutoyo 543-855-D is a high-resolution digital indicator from the ID-F Series 543, engineered for precision and reliability. It features a lug back plate, offering flexible mounting options for various setups. With a measuring range of 12.7 mm, it is well-suited for standard dimensional checks. The indicator delivers a resolution of 0.0005 mm, ensuring fine, detailed measurement readouts. It maintains a solid repeatability of 0.002 mm, ideal for repeat inspections and consistent results. Built to Mitutoyo’s quality standards, it’s a dependable tool for shop floor or lab use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01 mm
Display	LCD with red/green backlight, character height 11 mm
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.0025 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	AC adapter 5,9V DC, 2A
Protection	IP30
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M 2.5 x 0.45 mm
Type	Digital Indicator
Weight	180 g

Measuring Range: 12.7 mm for everyday precision measurement tasks
Resolution: 0.0005 mm for clear, high-accuracy readings
Repeatability: 0.002 mm for reliable, repeatable results
Mounting: Lug back plate for versatile mounting configurations
Display: Easy-to-read digital LCD for efficient data visibility
Series: Part of the ID-F Series 543, known for performance and durability
