Part Number : 547-211A

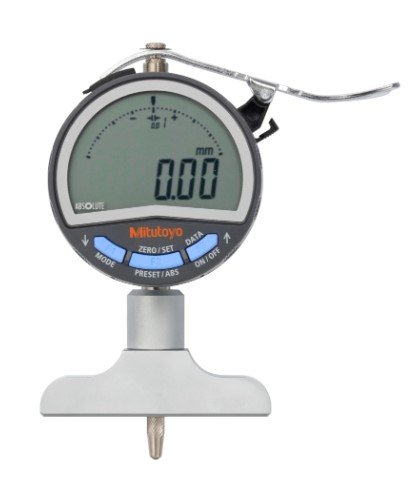

The Mitutoyo 547-211A Digital Depth Gauge (Series 547) offers precise digital readings with a step of 0.01 mm. It features a stroke of 12.7 mm for versatile depth measurements. With an accuracy of ± 20 µm, it ensures highly reliable results. The gauge’s digital display provides clear and easy-to-read measurements. Weighing just 280 g, it is lightweight and easy to handle. This tool is ideal for professionals seeking high accuracy in precision depth measurement tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 20 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Base	5 µm
Battery Life	Approx. 7000 hours
Calculation function	Yes
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.01 mm
GO/+/-NG judgement	Yes
Inch-Metric	Metric
Lock function	Yes
Max/Min	Range : Yes
Measuring Force	¢°¤ 1.5 N
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	12.7 mm
Thread type	M2.5x0.45
Type	Digital Depth Gauge
Weight	280 g

Digital Readings: Provides clear digital measurements with a step of 0.01 mm for high precision.
Stroke: Offers a 12.7 mm stroke, allowing for a variety of measurement applications.
High Accuracy: Features an accuracy of ± 20 µm for reliable and precise results.
Easy-to-Read Display: The digital display ensures clear and straightforward readings.
Lightweight: Weighs just 280 g, making it comfortable and easy to use.
Ideal for Professionals: Perfect for quality control, inspections, and precision depth measurements.
