Part Number : 547-257A

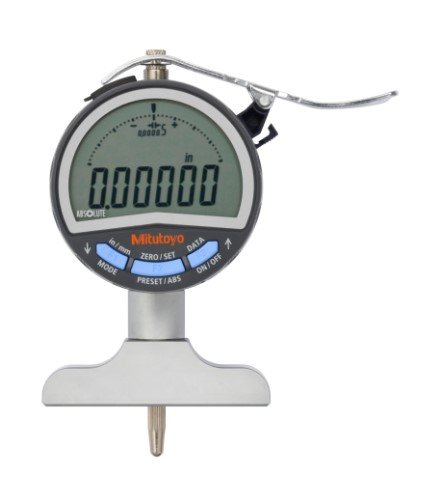

The Mitutoyo 547-257A Digital Depth Gauge (Series 547) provides ultra-precise digital measurements with a step of 0.00002 inch. It features a stroke of 0.5 mm, ideal for fine depth measurements. With a range of 0 to 8 inches, it covers a wide variety of depth measurement tasks. The gauge offers highly accurate readings, making it suitable for high-precision applications. Weighing just 285 g, it is lightweight and easy to handle. This tool is perfect for professionals who require exceptional accuracy in quality control and inspection work.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 0.0002 In or +/- 5 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Base	0.00008 In or 2 µm
Battery Life	Approx. 7000 hours
Calculation function	Yes
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.00002 In or 0.0005 mm
GO/+/-NG judgement	Yes
Inch-Metric	Inch/Metric
Lock function	Yes
Max/Min	Range : Yes
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032 (3V)
Range	0 - 8 Inch
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	0.5 mm
Thread type	# 4-48UNF
Type	Digital Depth Gauge
Weight	285 g
ZERO/ABS	Yes

Ultra-Precise Digital Readings: Offers a digital step of 0.00002 inch for extremely accurate measurements.
Stroke: 0.5 mm stroke for fine and detailed depth measurements.
Wide Range: Measures from 0 to 8 inches, accommodating a variety of tasks.
High Accuracy: Designed for high-precision applications with reliable results.
Lightweight: Weighs just 285 g, ensuring comfortable handling and portability.
Professional Use: Ideal for quality control, inspections, and precision depth measurements in various industries.

DOWNLOAD CATALOG
