Mitutoyo 547-258A | Digital Depth Gauge | Series 547 | Resolution 0.001mm or 0.00005 inch | Accuracy ± 0.005mm or ± 0.001 inch | Range 0 to 200mm or 0 to 8 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 547-258A

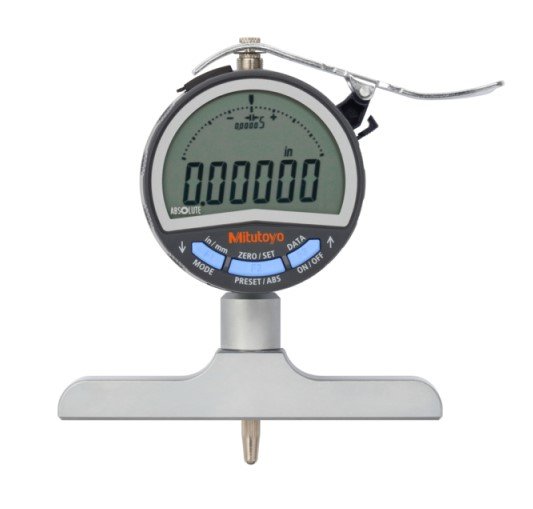

The Mitutoyo 547-258A Digital Depth Gauge offers a measurement range from 0 to 200mm (0 to 8 inches) for versatile depth measurements. It provides a resolution of 0.001mm or 0.00005 inch for precise readings. The tool ensures an accuracy of ±0.005mm or ±0.001 inch for reliable and consistent results. Its digital display makes measurements quick and easy to read. Part of Mitutoyo's Series 547, known for precision and durability, it is designed for measuring depths in various industrial and technical applications. Ideal for tasks requiring high precision, the gauge delivers excellent performance in both metric and imperial units.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 0.0002in or +/- 5 µm
Analog/Digital	Digital
Auto shut-off	Yes
Contact point	Carbide ball
Digital step	0.00002in or 0.0005 mm
Flatness	0.00008in or 2 µm
Inch-Metric	Inch/Metric
Lock function	Yes
Measuring Force	¢°¤ 1.5 N
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Range	0 - 8 Inch
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	0.6 mm
Thread type	# 4-48UNF
Type	Digital Depth Gauge
Weight	335 g
ZERO/ABS	Yes

Measurement Range: 0 to 200mm (0 to 8 inches) for versatile depth measurements.
High Resolution: 0.001mm or 0.00005 inch for ultra-precise readings.
Accuracy: ±0.005mm or ±0.001 inch, ensuring reliable results.
Digital Display: Easy-to-read digital output for quick and accurate measurements.
Mitutoyo Series 547: Known for durability, precision, and excellent performance.
Dual Measurement Units: Supports both metric (mm) and imperial (inches) units for flexibility.

DOWNLOAD CATALOG

Mitutoyo 547-258A | Digital Depth Gauge | Series 547 | Resolution 0.001mm or 0.00005 inch | Accuracy ± 0.005mm or ± 0.001 inch | Range 0 to 200mm or 0 to 8 inch

Mitutoyo 571-261-10 ABSOLUTE Digimatic Coolant Proof Depth Gauge 0-150mm / 0-6", Resolution 0.01 mm (.0005")

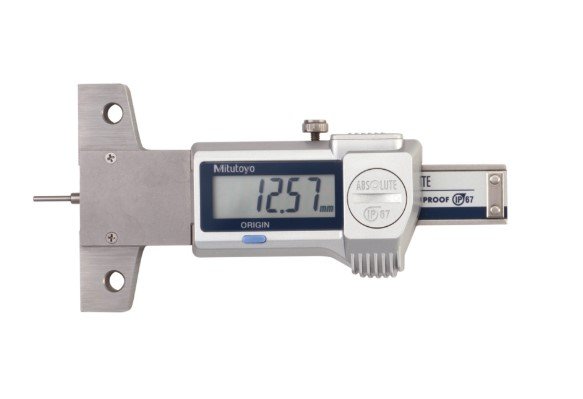

Mitutoyo 571-200-20 | Digital ABS Tyre Tread Depth Gauge | Series 571 | Digital Step 0.005 Inch | Range 0 - 1 Inch | Weight 160 g

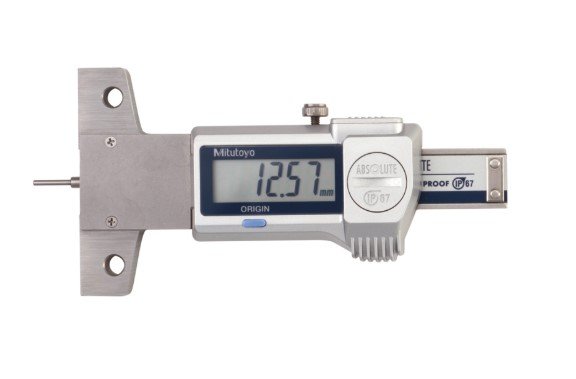

Mitutoyo 571-100-20 | Digital ABS Tyre Tread Depth Gauge | Series 571 | Digital Step 0.01 mm | Accuracy ±0.02 mm | Weight 160 g

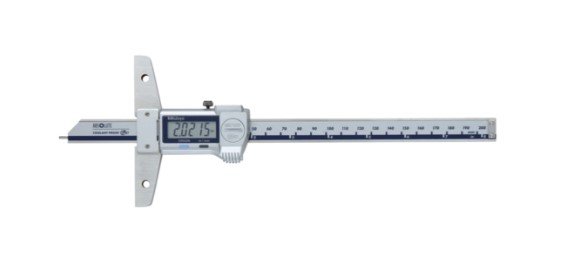

Mitutoyo 571-312-20 | Digital ABS Depth Gauge | Series 571 | Pin Type | Digital Step 0.005 Inch | Range 0 to 8 Inch | Weight 227 g

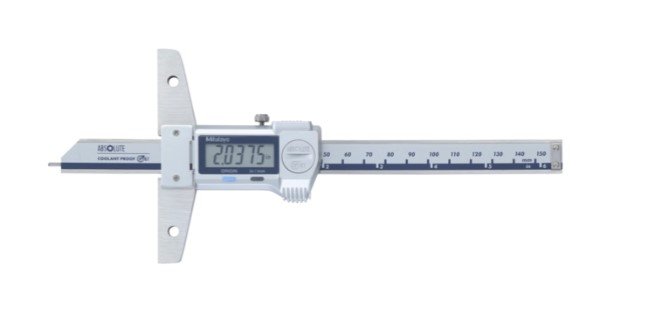

Mitutoyo 571-311-20 | Digital ABS Depth Gauge | Series 571 | Pin Type | Digital Step 0.005 Inch | Range 0 to 6 Inch | Weight 207 g

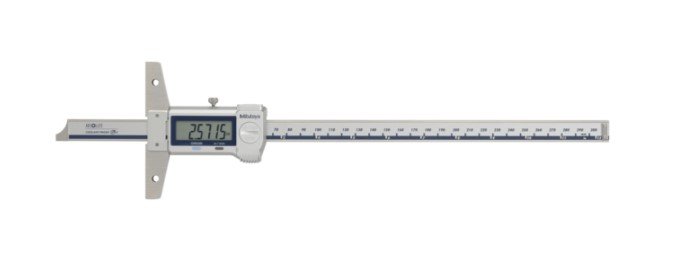

Mitutoyo 571-263-20 | Digital ABS Depth Gauge | Series 571 | Digital Step 0.005 Inch | Range 0 to 12 Inch | Repeatability 0.01 mm | Weight 315 g

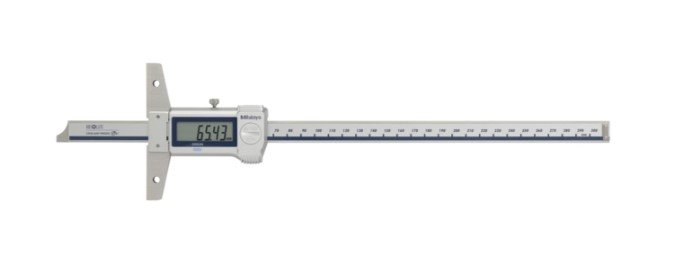

Mitutoyo 571-253-20 | Digital ABS Depth Gauge | Series 571 | Digital Step 0.01 mm | Accuracy ±0.03 mm | Range 0 to 300 mm | Weight 315 g

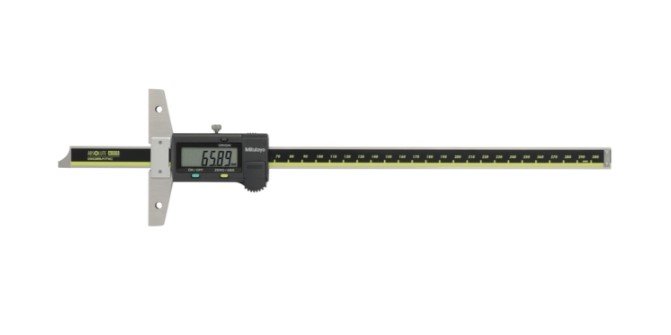

Mitutoyo 571-203-30 | Digital ABS Depth Gauge | Series 571 | Digital Step 0.01 mm | Accuracy ±0.03 mm | Range 0 to 300 mm | Weight 310 g
