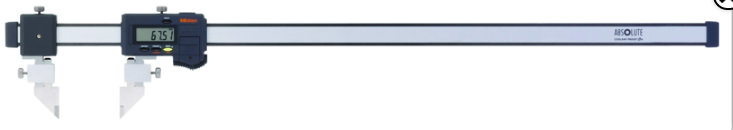

Mitutoyo 552-193-10 | Carbon Fibre Caliper, Interchangeable Jaws | 0–1000 mm / 0–40 in, 0.01 mm, IP66
Mitutoyo 552-193-10: a carbon fibre caliper (interchangeable jaw type) combining a 0–1000 mm / 0–40 in range, 0.01 mm / 0.0005 in resolution and ±0.04 mm / ±0.002 in accuracy. The 552-193-10 can be used on the shop floor where coolant, cutting oil, water or dust are around. The 552-193-10 is supplied with data output.
- IP66 protection against water and dust
- Offset button for direct readout of inside measurements
- Preset lets you enter a reference value
- Lightweight carbon fibre construction
- Up to 50% lighter thanks to carbon fibre reinforced material
- Optional interchangeable measuring jaws
- Specifications
- Features
- Downloads
| Part Number | 552-193-10 |
| Brand | Mitutoyo |
| Range | 0–1000 mm / 0–40 in |
| Resolution | 0.01 mm / 0.0005 in |
| Accuracy | ±0.04 mm / ±0.002 in |
| Units | Inch / metric |
| Data Output | Yes |
| Protection | IP66 |
| Beam Material | Carbon fibre reinforced plastic |
- Its ultra-lightweight design (with carbon fibre reinforced material) reduces total weight by up to 50%.
- It has excellent resistance against water and dust (IP66 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
- Direct readout of inside measurements from the LCD (you can easily set the offset value by using the offset button).
- Preset function lets you set a desired starting point.
