Mitutoyo 559-509-54 | NC Linear Scale AT1354-600-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m

Name: Mitutoyo 559-509-54 | NC Linear Scale AT1354-600-S | S-Type | FANUC Interface Compatibility | Resolution 0.01 ¼m
Brand: Mitutoyo
SKU: 559-509-54
Availability: InStock

Part Number : 559-509-54

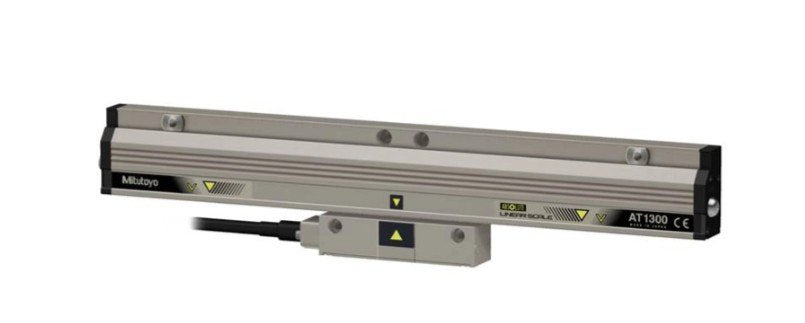

The Mitutoyo 559-509-54 NC Linear Scale AT1354-600-S is a high-precision S-Type linear encoder designed for CNC and automated machinery applications. It offers a resolution of 0.01 μm, making it suitable for tasks requiring fine measurement accuracy. This model is fully compatible with FANUC interfaces, ensuring seamless integration with FANUC-controlled equipment. Built with durability in mind, it supports reliable operation in industrial environments. The scale features a measuring length of 600 mm, suitable for medium-range precision movement tracking.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	FANUC Interface Compatability
Mass (main unit)	Signal Cable : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	0.01 1/4m
Series	ABS AT1300-S Series
Type	S- Type

Ultra-High Resolution (0.01 μm): This linear scale offers an exceptional resolution of 0.01 μm, providing unparalleled precision for tasks that demand the highest level of accuracy in measurement. It ensures that even the smallest deviations are captured, making it ideal for applications requiring micron-level precision.
S-Type Design for Durability: The S-Type construction of the Mitutoyo 559-509-54 is specifically designed for high durability and resistance to environmental factors. Its robust casing protects the internal components from damage due to dust, vibration, or harsh conditions commonly found in industrial settings.
FANUC Interface Compatibility: The scale is engineered for seamless integration with FANUC CNC controllers, allowing it to easily connect with FANUC-based machines. This compatibility ensures smooth data communication and high-performance measurement systems, making it an ideal choice for automated manufacturing processes.
Enhanced Accuracy and Stability: With its advanced optical scanning system and high-grade materials, this linear scale provides exceptional measurement stability over time. It delivers highly accurate results even in environments with varying temperatures or mechanical vibrations, ensuring reliable performance throughout its lifespan.
Wide Range of Applications: The Mitutoyo 559-509-54 is versatile, suitable for use in a variety of precision machining applications, including CNC lathes, milling machines, and other high-precision equipment. Its high resolution and compatibility with advanced machinery make it ideal for industries such as aerospace, automotive, and electronics, where precision is critical.
Compact and Easy to Install: Despite its advanced features, the scale is compact, allowing for easy installation in tight spaces within machinery. Its design ensures it can be retrofitted or integrated into a variety of existing systems with minimal modification.
Long-Term Reliability: Built with high-quality materials, the Mitutoyo 559-509-54 linear scale is designed for long-lasting reliability in demanding industrial environments. It is engineered to maintain its high performance over extended periods, even under continuous use.
