Part Number : 570-402

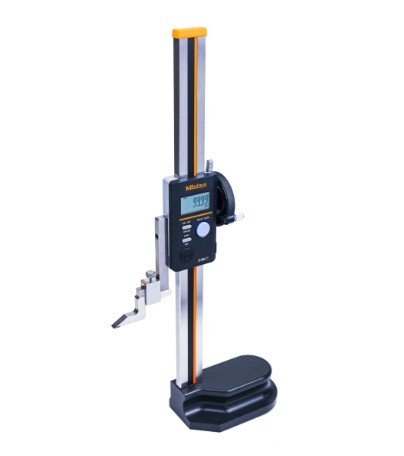

The Mitutoyo 570-402 Digital ABS Height Gauge (Series 570) delivers accurate and efficient digital measurements. It features a digital step of 0.01 mm for fine resolution. With an accuracy of ±0.03 mm, it ensures dependable results in precision tasks. The measuring range of 0 to 300 mm covers a wide array of applications. Weighing 4.6 kg, it offers a balance of stability and portability. Ideal for use in inspection rooms, workshops, and production lines.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Digital
Battery Life	Approx. 5 years under normal use
Data hold function	Yes
Digital step	0.01 mm
Display	LCD, character height 12 mm
Inch-Metric	Metric
Max. permissible error	E MPE: +/-0.03 mm
Max. Response Speed	Unlimited
Model Number	HDS-30CX
ON/OFF	Yes
Power Supply	1 battery SR-44
Range	0 - 300 mm
Scale	ABSOLUTE capacitance type linear encoder
Series	570
Type	Digital ABS Height Gauge
Weight	4.6 kg

High Accuracy: Delivers precise measurements with ±0.03 mm accuracy.
Fine Resolution: Digital step of 0.01 mm for detailed and clear readings.
ABS (Absolute) Encoder: Maintains origin setting, eliminating the need for reset after power-off.
Generous Measuring Range: Covers heights from 0 to 300 mm for versatile use.
Sturdy Yet Portable: Weighs 4.6 kg, offering both stability and manageable handling.
Clear Digital Display: Easy-to-read LCD for fast and reliable measurement reading.

DOWNLOAD CATALOG

Mitutoyo 570-402 | Digital ABS Height Gauge | Series 570 | Digital Step 0.01 mm | Accuracy ±0.03 mm | Range 0 to 300 mm | Weight 4.6 kg

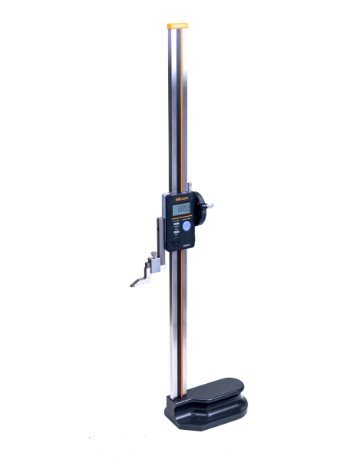

Mitutoyo 570-413 | Digital ABS Height Gauge | Series 570 | Digital Step 0.0005 Inch | Accuracy ±0.002 Inch | Range 0 - 18 Inch

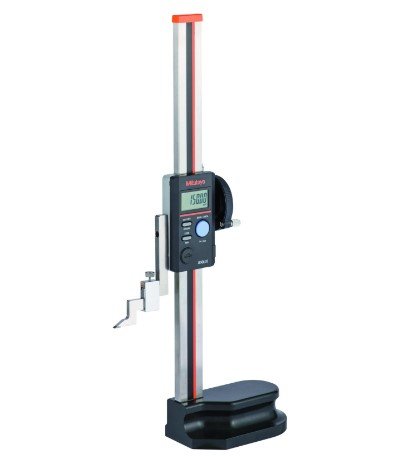

Mitutoyo 570-412 | Digital ABS Height Gauge | Series 570 | Digital Step 0.0005 mm | Accuracy ±0.0015 mm | Range 0 to 12 Inch

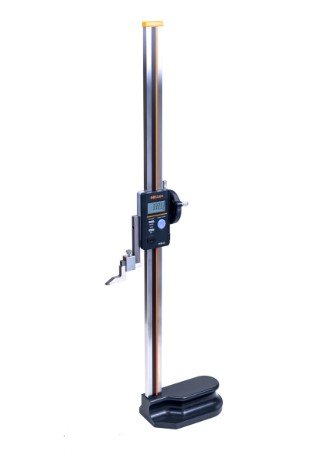

Mitutoyo 570-404 | Digital ABS Height Gauge | Series 570 | Digital Step 0.01 mm | Accuracy ±0.05 mm | Range 0 to 600 mm | Weight 6.4 kg

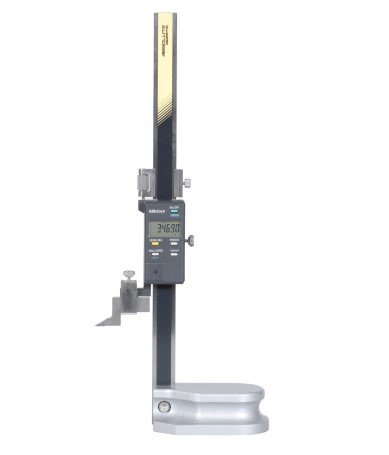

Mitutoyo 570-244 | Digital ABS Height Gauge | Series 570 | Digital Step 0.0005 Inch | Accuracy ±0.002 Inch | Range 0 to 8 Inch | Weight 1.3 kg

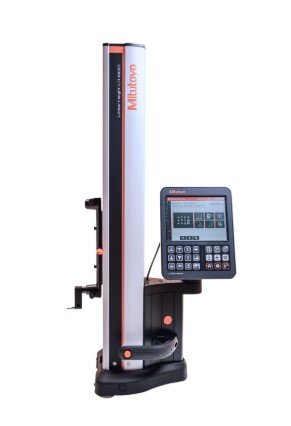

Mitutoyo 518-361-13 | Linear Height | Series 518 | LH-600FG | Slider stroke 600 mm | Straightness 4 µm | Range 0 to 977 mm | Weight 26.6 kg

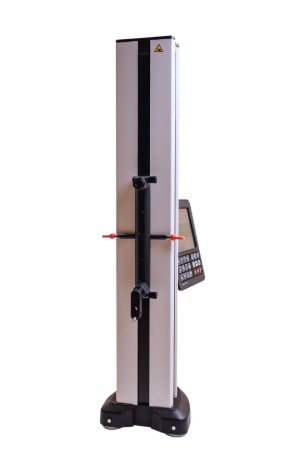

Mitutoyo 518-360-13 | Linear Height | Series 518 | For LH-600F | Slider Stroke 600 mm | Straightness 4 µm | Range 0 to 977 mm | Weight 26.1 kg
