Part Number : 570-414

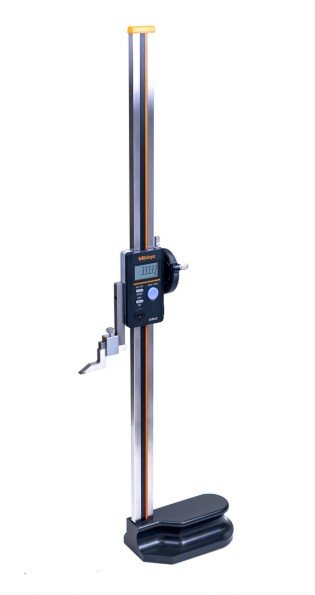

The Mitutoyo 570-414 Digimatic Height Gauge offers precise measurements with a graduation of 0.01mm (0.0005 inches). It features a high accuracy of ±0.05mm (±0.002 inches). With a measurement range of 0 to 600mm (0 to 24 inches), it is ideal for various height measurement tasks. The digital display ensures easy reading of values. This model is designed for use in precision machining and quality control applications. Built to withstand regular use, it ensures long-term reliability and performance.

Availability: in stock

Free UAE shipping available

Price : AED 4,100.00 *

5% VAT will be extra

Credit purchase may have different price*

Back to Details

Specifications
Features
Downloads

Accuracy	+/- 0.002in or +/- 0.05 mm
Analog/Digital	Digital
Battery Life	Approx. 5 years under normal use
Data hold function	Yes
Data Output	SPC
Digital step	0.0005in or 0.01 mm
Display	LCD, character height 12 mm
Inch-Metric	Inch/Metric
Model Number	HDS-24"CX
ON/OFF	Yes
Power Supply	1 battery SR-44
Range	0 - 24 Inch
Response Time	Unlimited
Scale	ABSOLUTE capacitance type linear encoder
Series	570
Type	Digimatic Height Gauge

High Accuracy: Provides an accuracy of ±0.05mm (±0.002 inches) for precise measurements.
Graduation: Offers a fine graduation of 0.01mm (0.0005 inches) for detailed readings.
Measurement Range: Capable of measuring from 0 to 600mm (0 to 24 inches) for versatile applications.
Digital Display: Easy-to-read digital display for clear and quick measurements.
Advanced Technology: Incorporates Mitutoyo's Digimatic system for smooth and consistent measurement.
Durable Construction: Built for long-term use in demanding industrial and precision environments.
