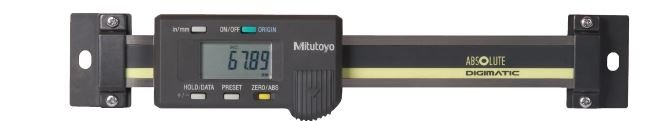

Mitutoyo 572-470, Horizonal Digimatic Scale, SPC, 0-4/0-100mm

Name: Mitutoyo 572-470, Horizonal Digimatic Scale, SPC, 0-4/0-100mm
Brand: Mitutoyo
SKU: 572-470
Availability: InStock

Part Number : 572-470

The Mitutoyo Digimatic scale is designed to be mounted on jigs, tools, and small machine machines for precise positioning. A built-in ABSOLUTE scale is also provided, which uses the Mitutoyo ABS point and does not need to be zeroed when turned on. Furthermore, overspeed mistakes have been reduced, resulting in increased reliability. The ORIGIN key allows you to define an absolute zero point that will be used as a reference for future measurements. Horizontal display in accordance with the mounting direction of the scale. Longer battery life means less upkeep. An output port is included for transferring measurement data to control and gauging systems. External display devices for EC counters are available.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	.001" / 0.03 mm
Brand	Mitutoyo
Display	LCD
Functions	Origin-set, Zero-setting, Power on/off, Presetting, Datahold, Data output, inch/mm conversion (inch/mm models),Measurement direction switchingAlarm: Low voltage, Measurement value composition errornot available for single-function models
Horizontal/ Vertical	Horizontal
L-1	244 mm
L-2	220 mm
Range	0 - 4" / 0 - 100 mm
Resolution	.0005" / 0.01 mm
Weight	0.25 kg

The ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements. Once set, the ABS Digimatic Scale Unit is ready to show its true position whenever turned on rather than 0.00 as with standard models.
The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements. This key will also allow return to absolute coordinates with a display of the true position from the origin point.
No rack, no pinion, no glass scale. The Digimatic scale is safely embedded in the hardened stainless steel blade.
All units come with two mounting brackets, each located at one end of the scale.
With SPC data output.
