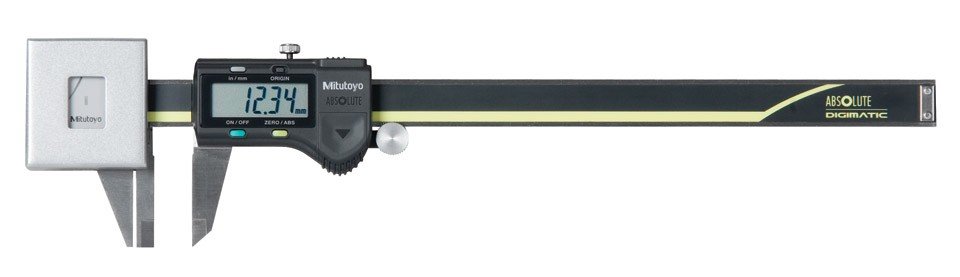

Mitutoyo 573-291-20 ABSOLUTE Digimatic Low Force Caliper 0-180mm / 0-7"
A Mitutoyo digital caliper equipped with a low-measuring-force device on the anvil for outside measurements on sensitive workpieces. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
Due to the low measurement force This calliper is perfect for measuring elastic workpieces such as plastic and rubber parts that are difficult to measure effectively with regular callipers
• The thumb roller makes fine adjustments smooth and simple.
• The main scale jaw moves 0.3 mm.
• Force to measure: 0.49 to 0.98 N (50 to 100 gf).
• Mitutoyo's ABSOLUTE system is featured. After turning on, there is no need to reset the origin.
• The operation of the slider is smooth and comfortable.
• Integration with statistical process control and measurement systems is possible thanks to the data output feature.
