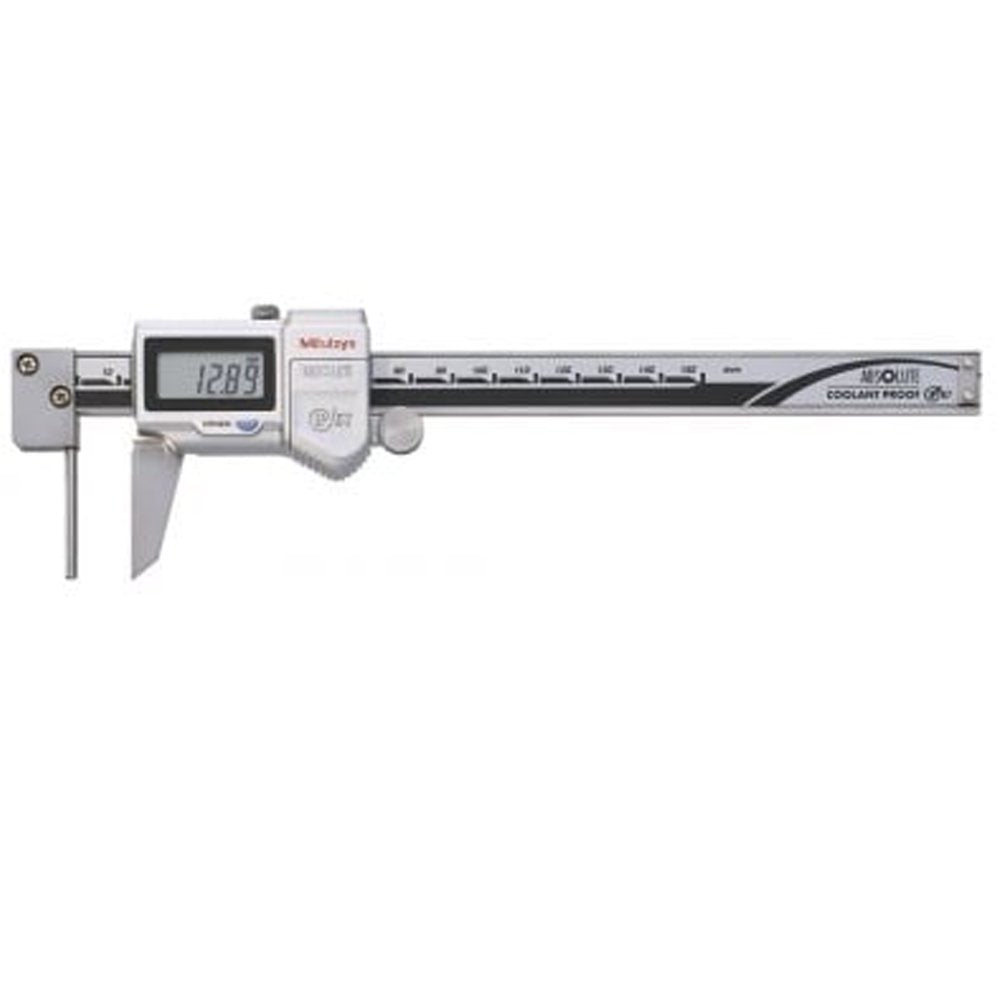

Mitutoyo 573-661 ABSOLUTE Digimatic Tube Thickness Caliper 0-150mm
A Mitutoyo waterproof digital caliper suitable for use in the presence of coolant or cutting oil. Equipped with cylindrical anvil for tube wall-thickness type measurements. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
These tube thickness calipers are designed especially for round-shaped workpieces.
They offer you the following benefits:
The beam-mounted jaw is a round bar that lets you easily measure tube wall thickness.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.05 mm (+/-.002") |
| Analog/Digital | Digital |
| Brand | Mitutoyo |
| Data Output | Yes |
| Measuring Units | Millimetre / Inch |
| Range | 0-150mm / 0-6 inch |
| Resolution | 0.01mm / .0005 inch |
| SKU | 573-661 |
| Type | Tube Thickness |
These tube thickness calipers are designed especially for round-shaped workpieces.
They offer you the following benefits:
The beam-mounted jaw is a round bar that lets you easily measure tube wall thickness.
