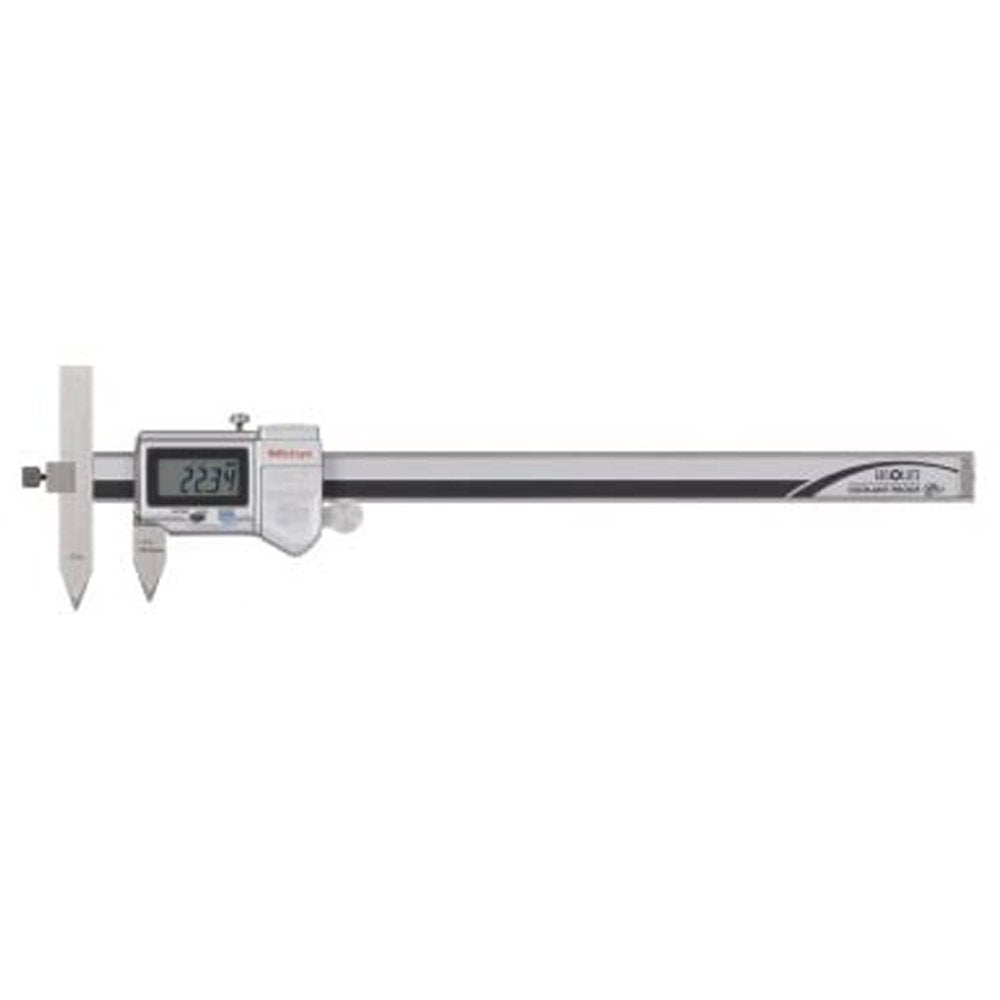

Mitutoyo 573-708 | ABSOLUTE Digimatic Offset Centreline Caliper | .4–12.4 in, coolant proof
The Mitutoyo 573-708 waterproof ABSOLUTE Digimatic offset centreline caliper covers .4 to 12.4 in and is built for hole centre-to-centre measurements on the same or offset planes. It can be used where coolant or cutting oil is present, and its ABSOLUTE scale needs no origin reset after switching on.
- Offset-centreline jaws
- Direct pitch reading with offset-value setting
- Accuracy ±0.04 mm (±.0015 in)
- Resolution 0.01 mm / .0005 in
- IP67; ABSOLUTE scale with SPC output
- Specifications
- Features
- Downloads
| Part Number | 573-708 |
| Brand | Mitutoyo |
| Type | Offset Centreline |
| Range | .4 - 12.4 inch |
| Data Output | Yes |
| Resolution | 0.01 mm / .0005 inch |
| Accuracy | ±0.04 mm (±.0015") |
| Measuring Units | Millimetre / Inch |
Specially designed for hole centre-to-centre measurements on the same, or offset, planes.
• Digimatic models feature Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on.
• Direct reading of pitch measurements is available due to the offset-value setting function.
• Digimatic models enable integration into statistical process control and measurement systems
