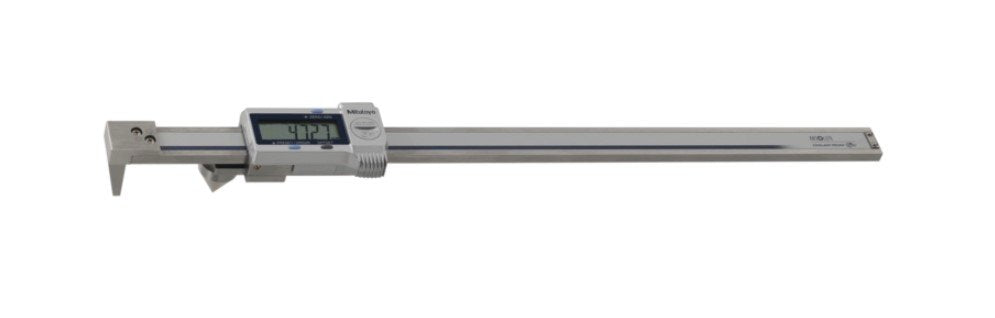

Mitutoyo 573-719-20 | Digital ABS Back-Jaw Caliper | Edge/centre, 10.1–300 mm, 10 mm offset
Measuring edge to centre over 10.1 to 300 mm, the Mitutoyo 573-719-20 Series 573 back-jaw caliper has a 10 mm offset and a 0.01 mm digital step. Weight is 555 g, the model number is NTD10B-P30M, and its ABS technology gives consistent, stable performance in precision measurement.
- Edge-to-centre measuring type
- Offset 10 mm
- 10.1–300 mm range
- S MPE ±0.15 mm
- Data output; unlimited response speed
- Battery life approx. 5 years under normal use
- Specifications
- Features
- Downloads
| Part Number | 573-719-20 |
| Brand | Mitutoyo |
| Model Number | NTD10B-P30M |
| Series | 573 |
| Type | Digital ABS Back-Jaw Caliper |
| Range | 10.1 - 300 mm |
| Data Output | Yes |
| Battery Life | Approx. 5 years under normal use |
| Digital Step | 0.01 mm |
| Max. Permissible Error (S MPE) | ±0.15 mm |
| Offset | 10 mm (0.394 in) |
| Weight | 555 g |
| Max. Response Speed | Unlimited |
| Measurement | Edge/Center |
- Back-Jaw Design: Specifically designed for edge-to-center dimension measurements with a 10 mm offset.
- Digital Step: 0.01 mm resolution for highly accurate and fine measurements.
- Measuring Range: 10.1 to 300 mm, suitable for a wide range of edge-to-center measurement tasks.
- ABS Technology: Ensures stable, consistent, and reliable measurement performance.
- Durable: Weighs 555 grams, providing a robust and stable tool for precise handling.
- Versatile: Ideal for precision measurements in engineering, machining, and quality control.
