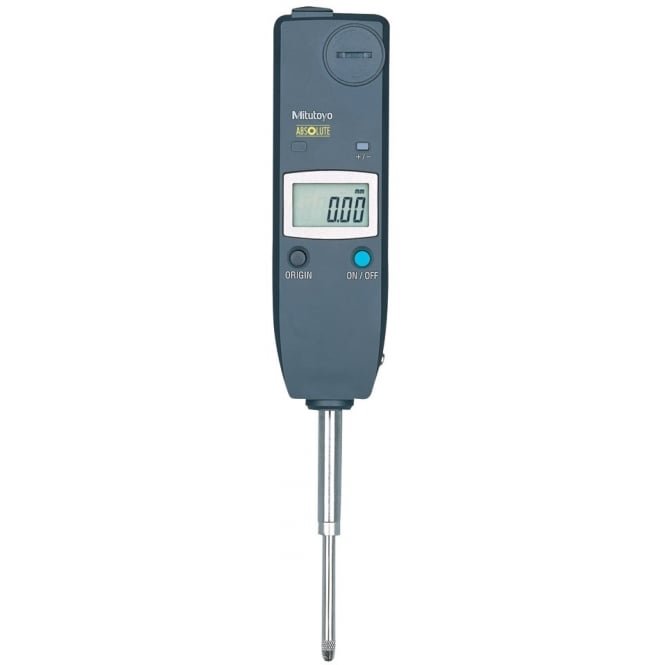

Mitutoyo 575-121 ABSOLUTE Digimatic Slim Body Economy Indicator ID-U 25.4mm
An economical, slim-style Mitutoyo digital indicator with an extemely long battery life suited to installation in measuring jigs where access may be restricted. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.02mm |
Analog/Digital | Digital |
Brand | Mitutoyo |
Data Output | Yes |
Measuring Force | 1.8N or less |
Measuring Units | Millimetre |
Range | 25.4mm |
Resolution | 0.01mm |
SKU | 575-121 |
Stem Dia | 8mm |
Type | Plunger |
This is a slim digital indicator with a range of 25 mm.
The following are the advantages of the ABSOLUTE Digimatic Indicator ID-U:
Because of the ABSOLUTE sensor, you won't have to establish the origin every time you turn it on, saving you time and effort.
Its small size makes it perfect for use in measurement instruments.
The battery life is exceptional.
