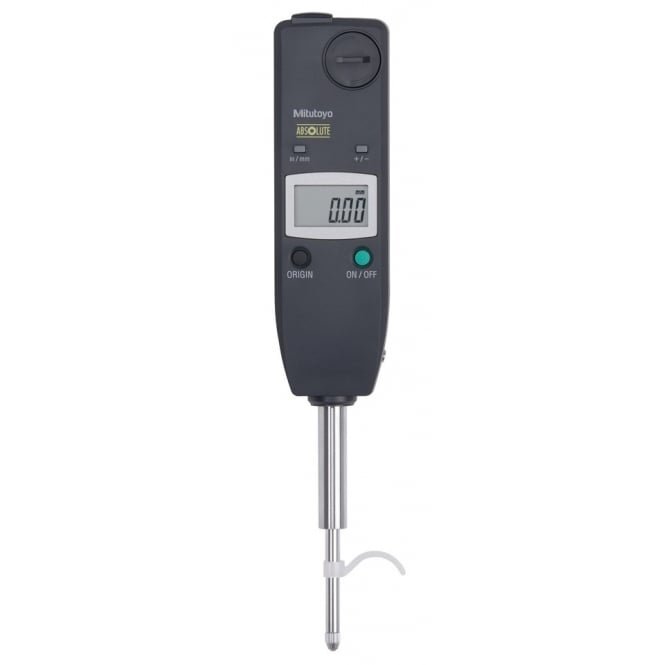

Mitutoyo 575-123 ABSOLUTE Digimatic Economy Indicator ID-U 25.4mm / 1"

Name: Mitutoyo 575-123 ABSOLUTE Digimatic Economy Indicator ID-U 25.4mm / 1"
Brand: Mitutoyo
SKU: 575-123
Availability: InStock

Part Number : 575-123

An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.02mm / +/-.0008 inch
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	1.8N or less
Measuring Units	Millimetre / Inch
Range	25.4mm / 1 inch
Resolution	0.01mm / .0005 inch
SKU	575-123
Stem Dia	9.52mm (3/8 inch)
Type	Plunger

• Cost-effective and user-friendly type equipped with only the basic functions necessary.
• The ABSOLUTE sensor restores the last origin position automatically when the indicator is turned on, and ensures high reliability by eliminating over-speed errors.
• Battery life of 20,000 hours in continuous use.
• Easy-to-read large LCD readout with a character height of 8 mm.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems
